Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF".
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics Back UP & Input (TCU Replacement)" and go to "Verification of Repair " procedure.
 Fig.1 to 9

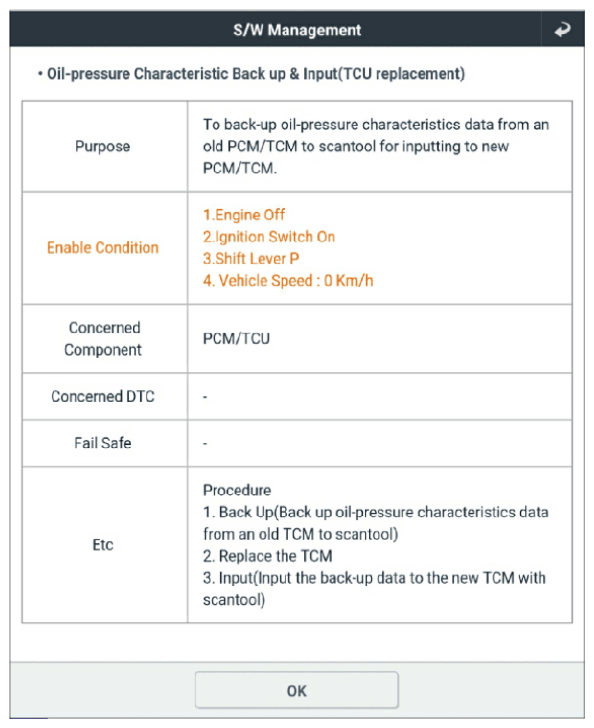

G13291799Courtesy of KIA MOTORS AMERICA, INC.

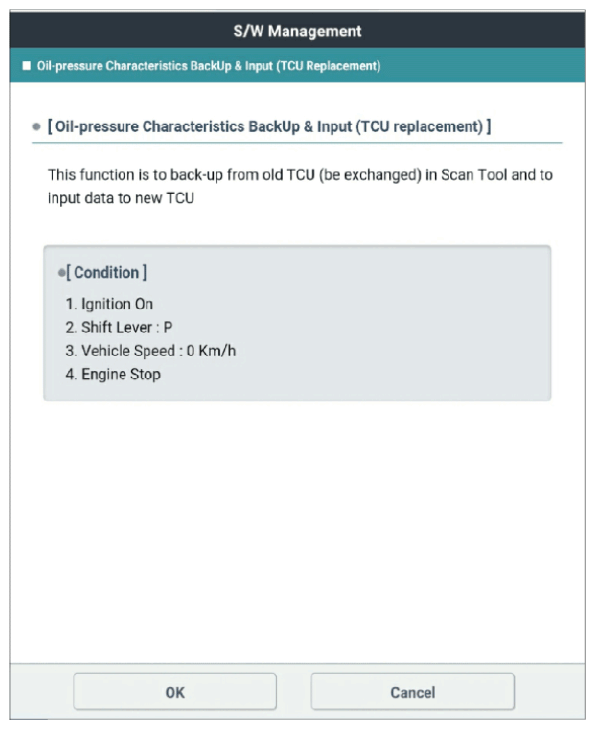

G13291800Courtesy of KIA MOTORS AMERICA, INC.

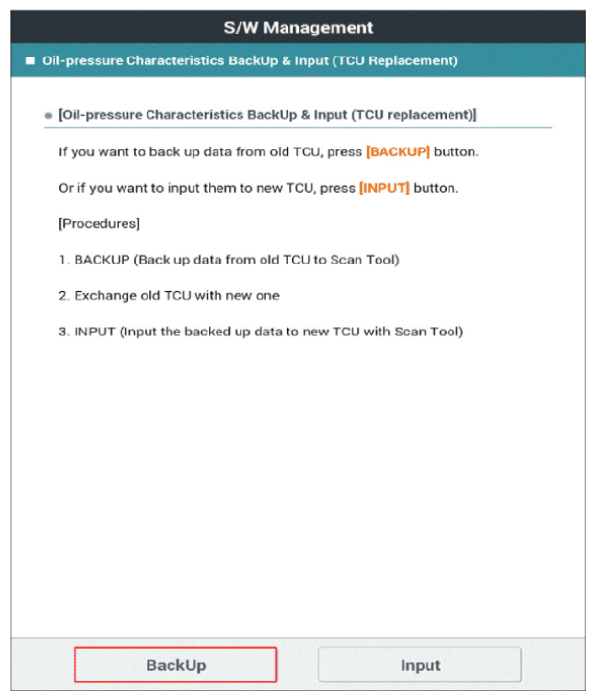

G13291801Courtesy of KIA MOTORS AMERICA, INC.

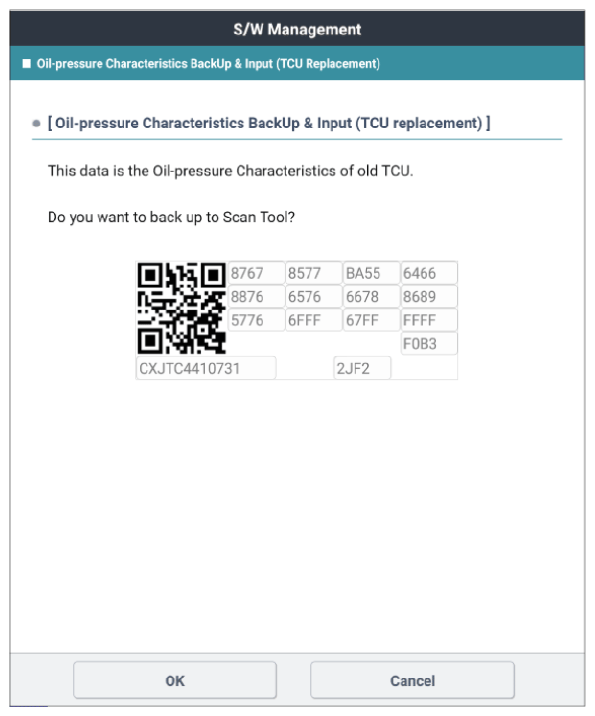

G13291802Courtesy of KIA MOTORS AMERICA, INC.

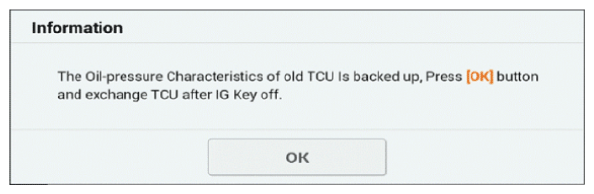

G13291803Courtesy of KIA MOTORS AMERICA, INC.

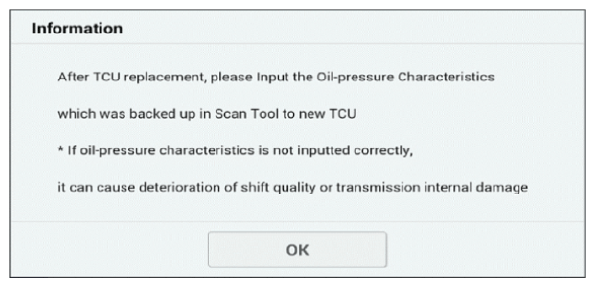

G13291804Courtesy of KIA MOTORS AMERICA, INC.

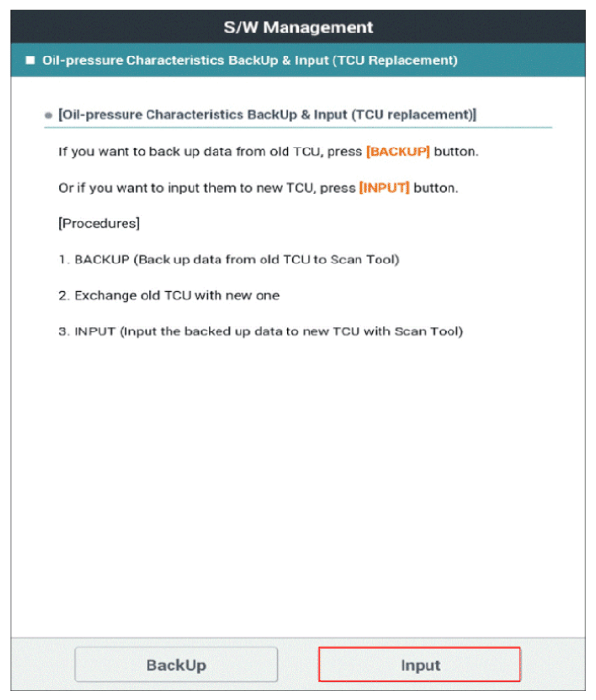

G13291805Courtesy of KIA MOTORS AMERICA, INC.

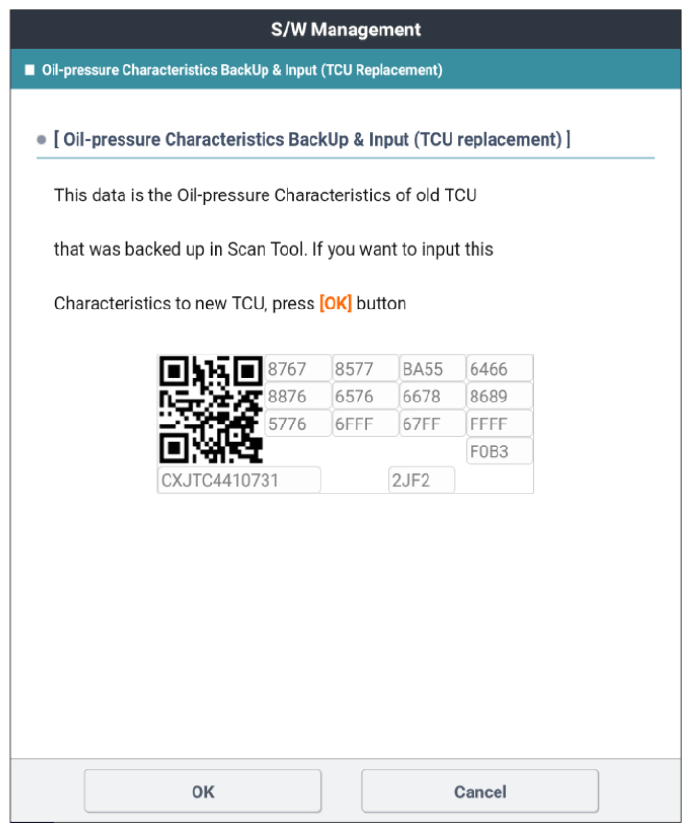

G13291806Courtesy of KIA MOTORS AMERICA, INC.
G13291807Courtesy of KIA MOTORS AMERICA, INC.
