Home › Kia › 2021 › Stinger GT-Line, AWD › Repair and Diagnosis › Accessories & Equipment › Communication Devices › Cluster Module Diagnosis › DTC B1008-55: MDPS Present Error - Coding Code Error › System Inspection › Vehicle S/W Management

Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 4

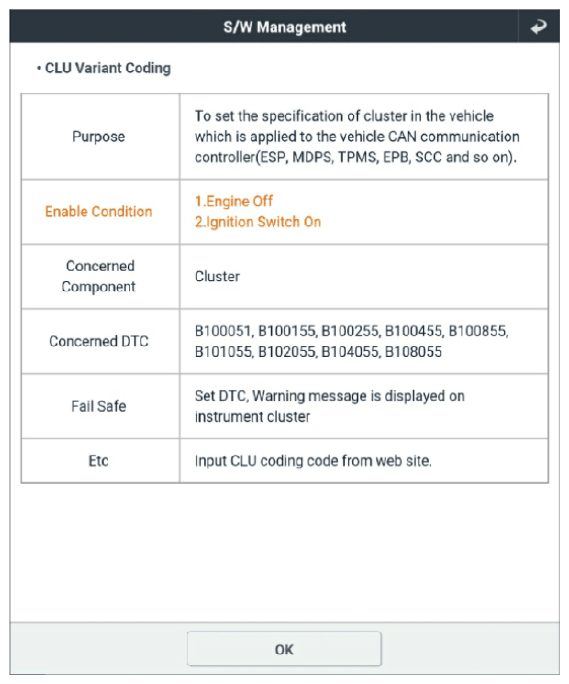

G13421708Courtesy of KIA

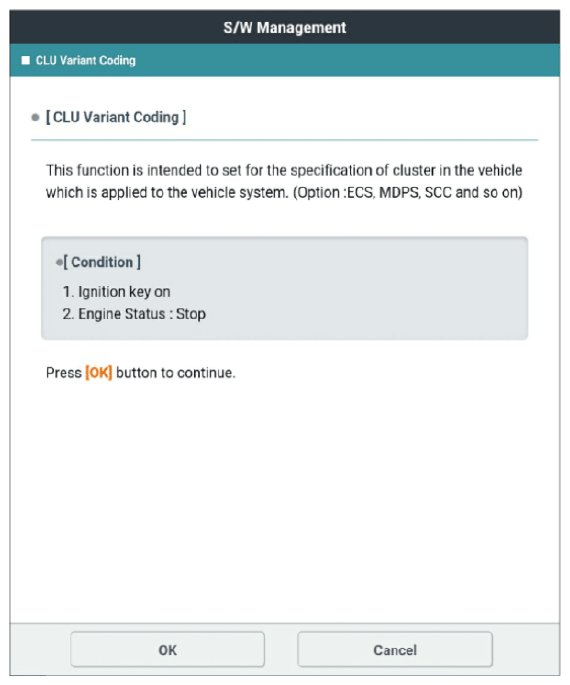

G13421709Courtesy of KIA

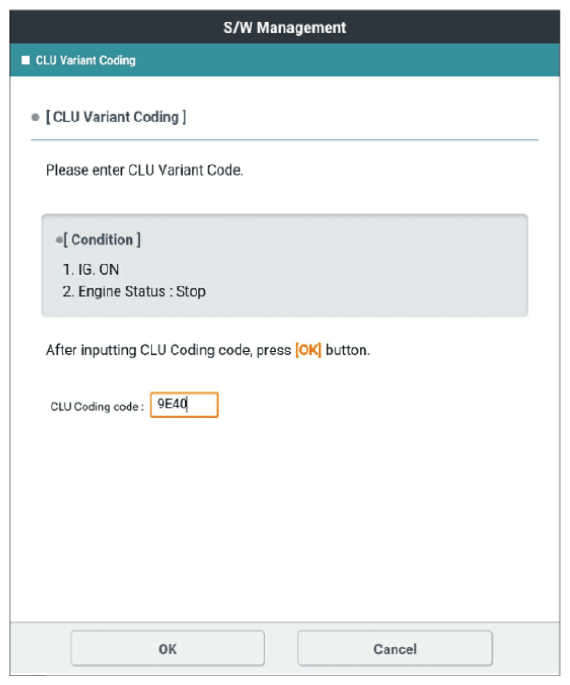

G13421710Courtesy of KIA

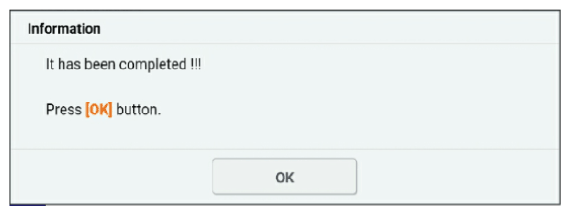

G13421711Courtesy of KIA
