Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")

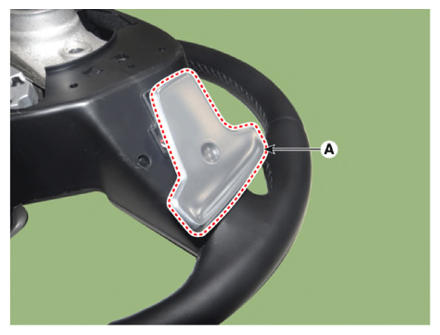

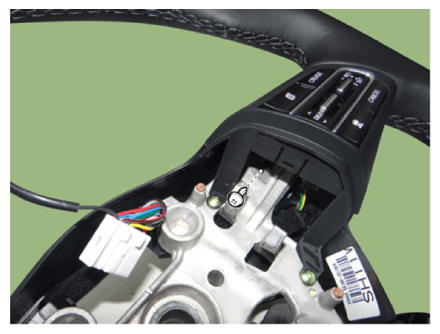

Remove the paddle shift switch (A) after loosening the mounting screws.
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

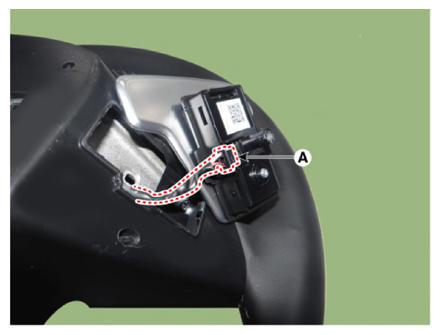

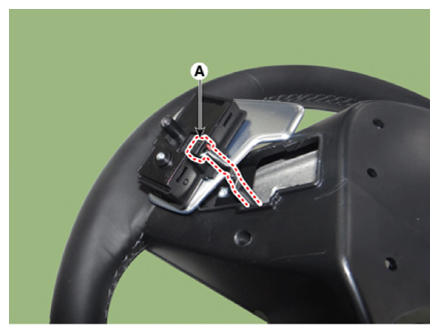

Disconnect the paddle shift switch connector (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

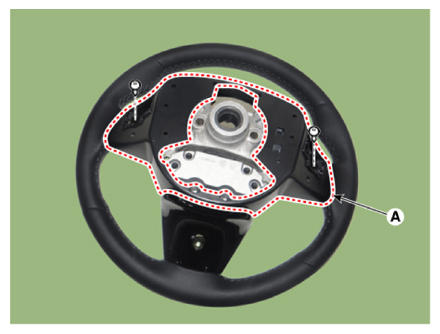

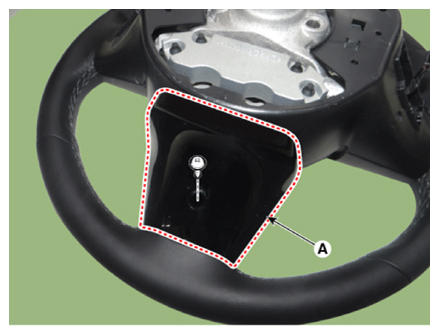

Remove the steering front cover (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

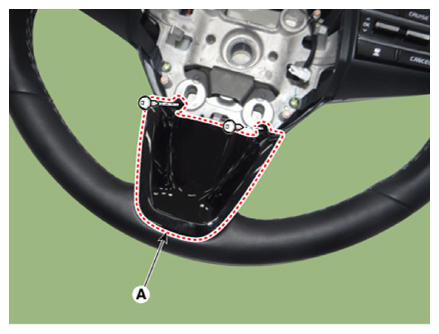

Remove the steering rear cover (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering back cover (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

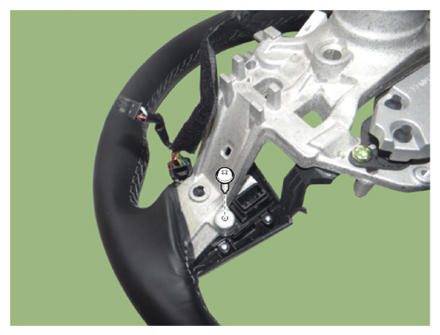

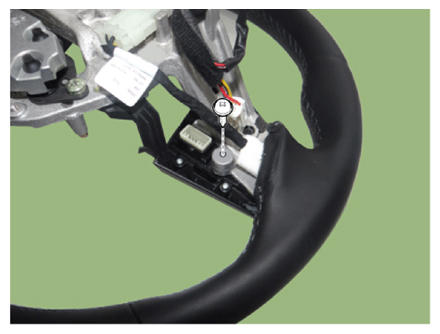

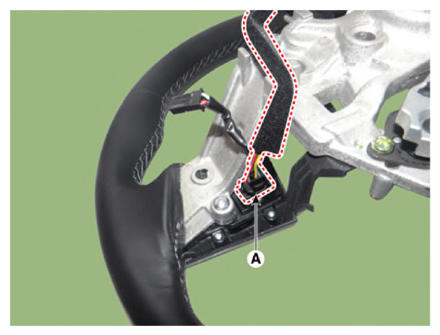

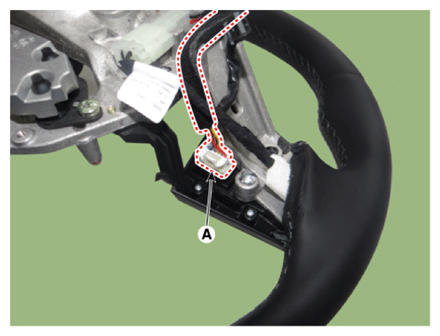

Disconnect the steering wheel remote control connector (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

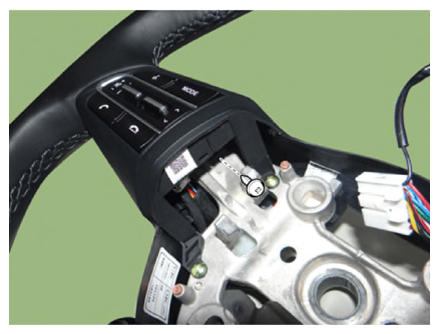

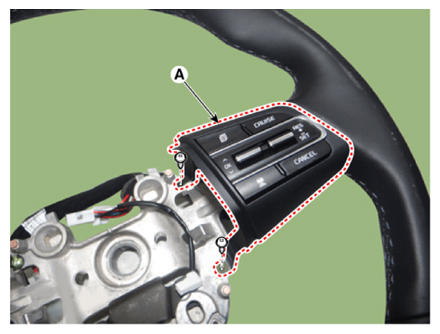

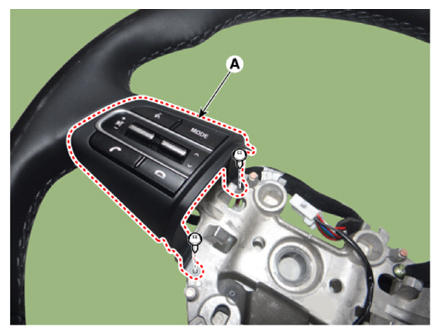

Remove the steering wheel remote control (A) after loosening the mounting screws.
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
