Liftgate Open Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the liftgate back panel.

    (Refer to Body - "TAIL GATE BACK PANEL ")

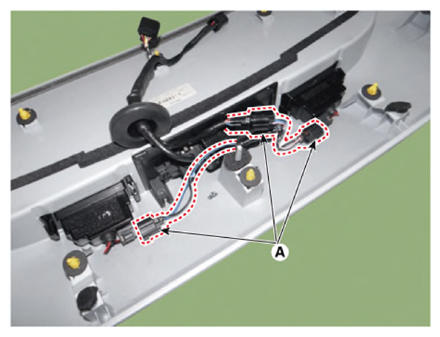

  3. Disconnect the license lamp connectors (A).
    G13426888Courtesy of KIA MOTORS AMERICA, INC.

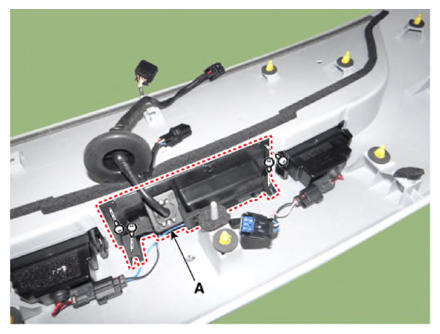

  4. Remove the liftgate outside handle assembly (A) after loosening the mounting screws.
    G13426889Courtesy of KIA MOTORS AMERICA, INC.

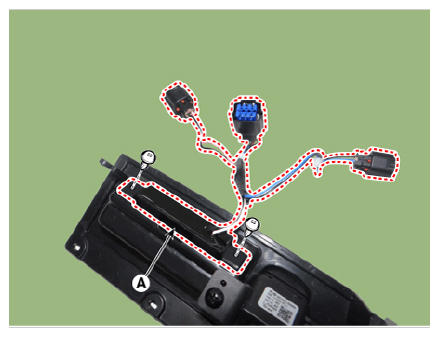

  5. Remove the liftgate open switch (A) after loosening the mounting screws.
    G13426890Courtesy of KIA MOTORS AMERICA, INC.
