Rear Bumper Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper beam assembly.

    (Refer to Body - "REAR BUMPER BEAM ASSEMBLY ")

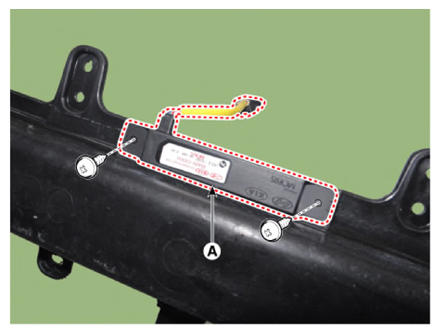

  3. Remove the rear bumper antenna (A) after loosening the mounting screws.
    G13426884Courtesy of KIA MOTORS AMERICA, INC.
