Button Engine Start System
›
Schematic Diagrams
›

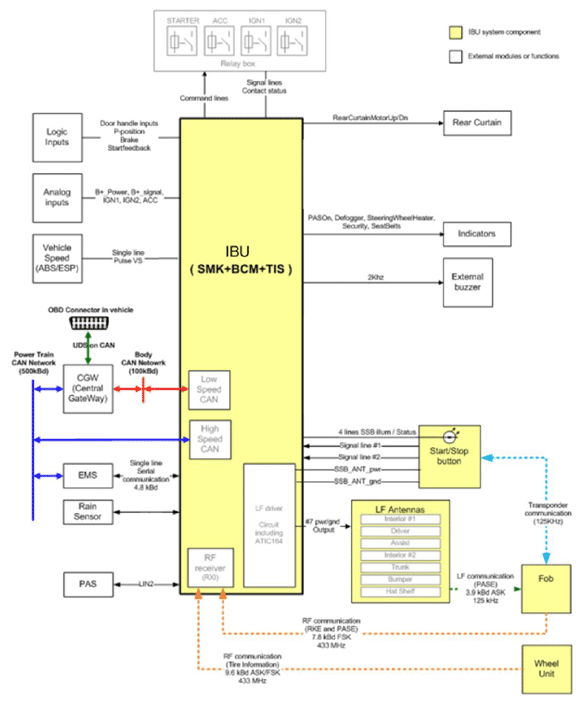

Circuit Diagram
Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
