Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad passenger side panal.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

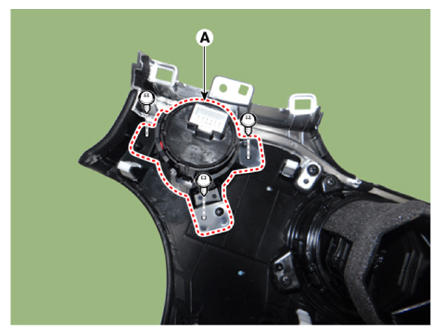

  3. Remove the start/stop button (A) after loosening the mounting screws.
G13426350Courtesy of KIA MOTORS AMERICA, INC.
