Rear Power Window Switch

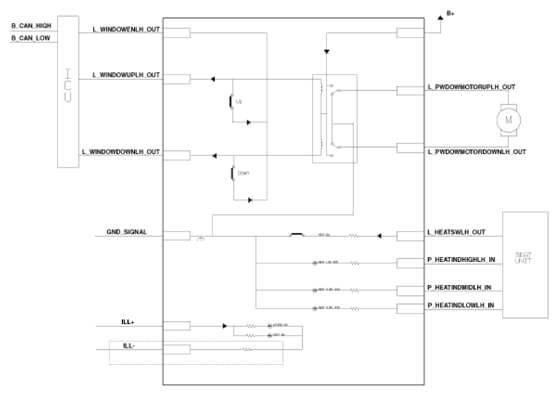

[Seat Warmer Type]

G13426767Courtesy of KIA MOTORS AMERICA, INC.

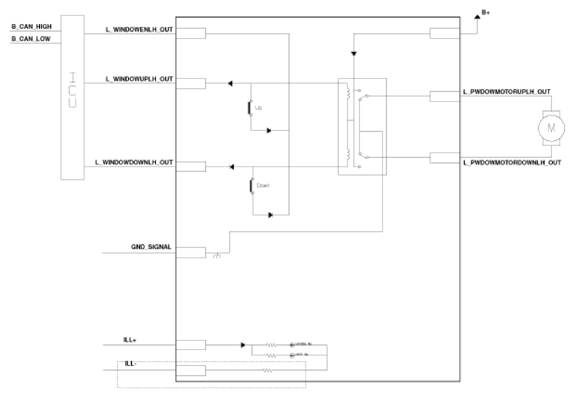

[Non-Seat Warmer Type]

G13426768Courtesy of KIA MOTORS AMERICA, INC.
