Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the drive belt.

    (Refer to Engine Mechanical System - "DRIVE BELT ")

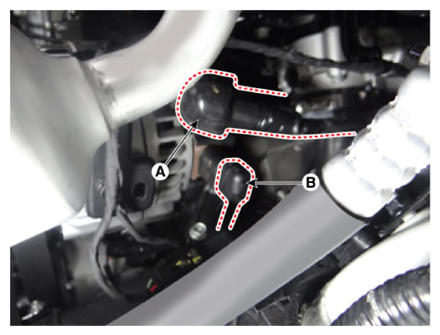

  3. Disconnect the alternator connector (B), and remove the cable (A) from alternator "B" terminal.
    G13423170Courtesy of KIA MOTORS AMERICA, INC.

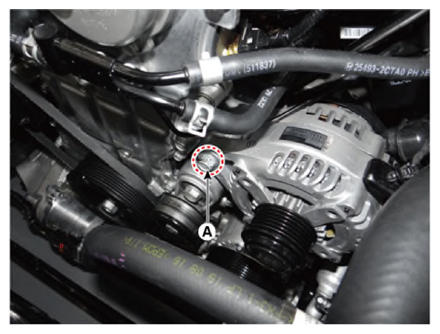

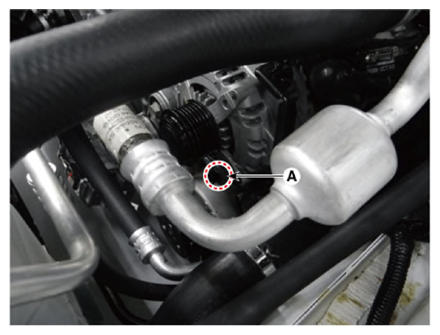

  4. Remove the alternator lower bolt and upper bolt (A).
    G13423171Courtesy of KIA MOTORS AMERICA, INC.
    G13423172Courtesy of KIA MOTORS AMERICA, INC.

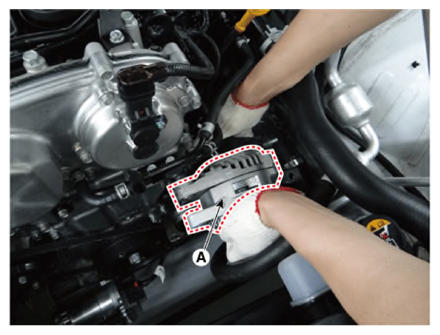

  5. Remove the alternator (A).

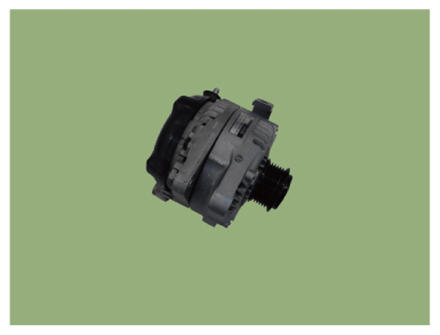

    G13423173Courtesy of KIA MOTORS AMERICA, INC.
    G13423174Courtesy of KIA MOTORS AMERICA, INC.
