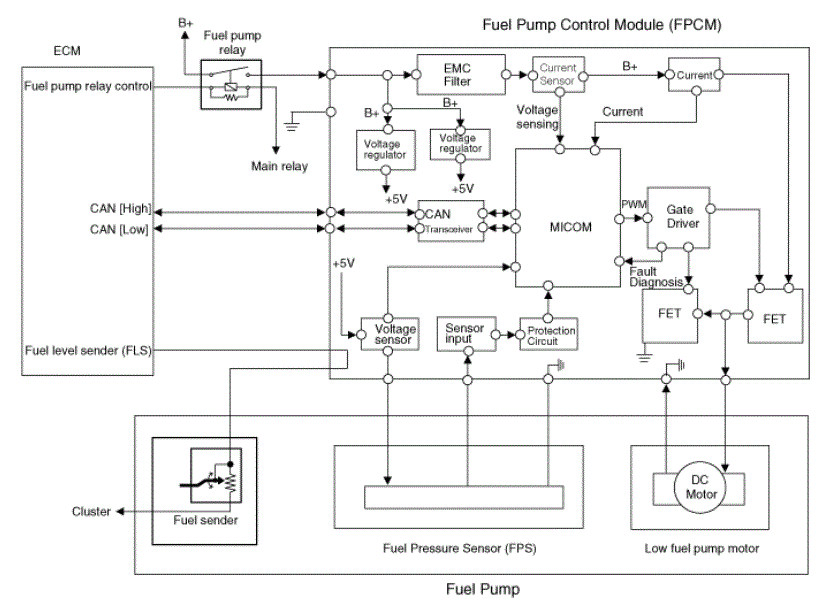

Home › Kia › 2021 › Stinger GT-Line, AWD › Repair and Diagnosis › Engine Mechanical › Fuel System › Fuel Delivery System - 2.0L › Fuel Pump Control Module (FPCM) › Schematic Diagrams › Circuit Diagram
