Wave Form
Wave Form
Courtesy of KIA MOTORS AMERICA, INC.

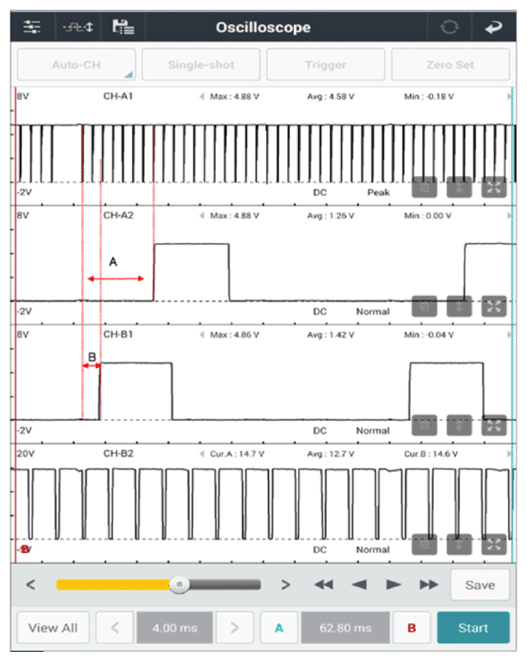

CKPS & CMPS1 synchronization - There are about 7 teeth between the CKPS missing tooth and CMPS Signal.
CKPS & CMPS2 synchronization - There are about 2 teeth between the CKPS missing tooth and CMPS Signal.
Courtesy of KIA MOTORS AMERICA, INC.
