Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

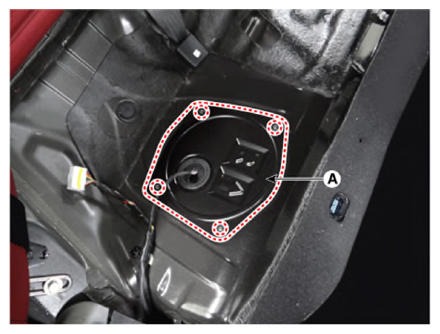

  3. Remove the sub fuel sender service cover (A) after loosening the mounting screws.
    G13423532Courtesy of KIA MOTORS AMERICA, INC.

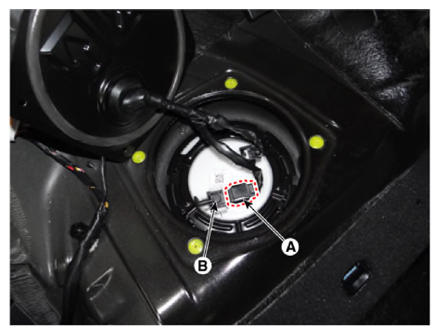

  4. Disconnect the fuel tank pressure sensor connector (A).
  5. Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
    G13423533Courtesy of KIA MOTORS AMERICA, INC.
