[Bank 1/Sensor 2]

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

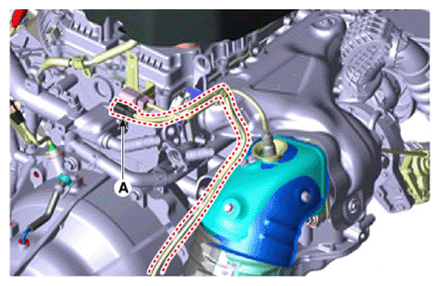

  2. Disconnect the connector (A).
    G13423507Courtesy of KIA MOTORS AMERICA, INC.
  3. Lift the vehicle.

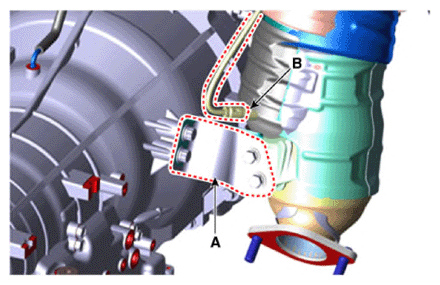

  4. Remove the catalytic converter bracket (A).
  5. Remove the sensor (B).
    G13423508Courtesy of KIA MOTORS AMERICA, INC.
