Home › Kia › 2021 › Stinger GT-Line, AWD › Repair and Diagnosis › Engine Performance › Ignition System › Ignition System - 2.0L › Spark Plug › Repair procedures › Removal

Repair procedures: Removal

  1. Remove the ignition coil.

    (Refer to Ignition System - "IGNITION COIL ")

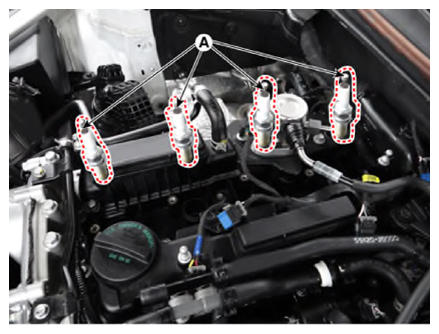

  2. Using a spark plug wrench, remove the spark plug (A).
    G13423246Courtesy of KIA MOTORS AMERICA, INC.
