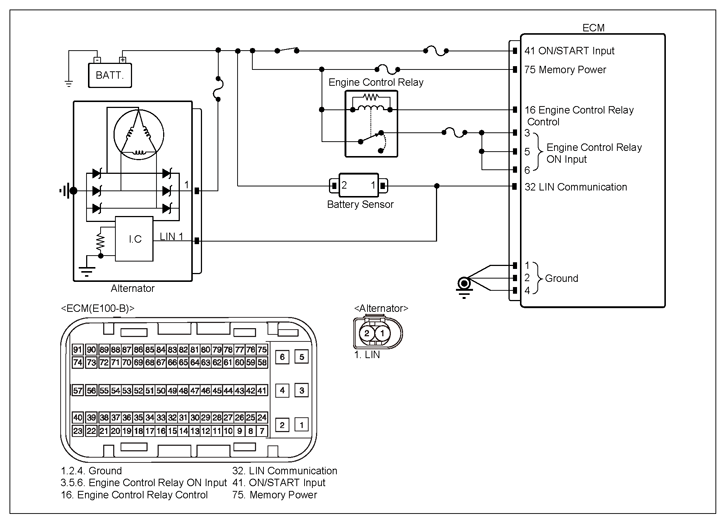

Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Alternator connector	1 (battery)	Chassis ground	-	B+
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	Alternator connector	1 (LIN)	ECM connector	32 (LIN)	Below 1Ω
	Alternator connector	1 (LIN)	Chassis ground	-	∞ (infinity)Ω

Good

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
