Repair Procedures: Disassembly

Remove the front shock absorber cover.

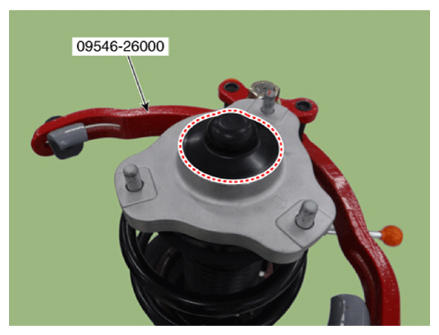

Compress the coil spring (A) with a strut spring compressor. Do not compress the spring excessively.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- To prevent peeling the paint of coil spring, cover the coil spring with a thin cloth or hose before installing strut spring compressor.
- Set the compression position of strut spring compressor correctly for coil spring not to slant when compressing the coil spring.

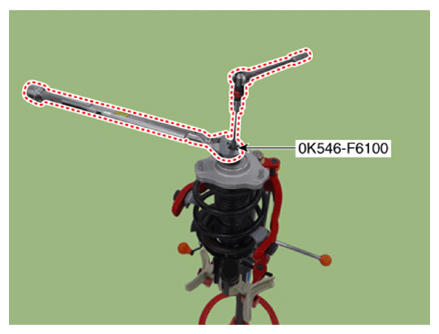

Using the SST (0K546-F6100), loosen the lock nut.
Tightening torque:

117.7 - 127.5 N.m (12.0 - 13.0 kgf.m, 86.8 - 94.0 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Gradually turn the bolt on the spring compressor to slowly release the tension from the spring. Then, disconnect the components.
Install in the reverse order of removal.
