Automatic Transmission System - 2.0L
›
Components & Components Location
›
Components
Components & Components Location: Components

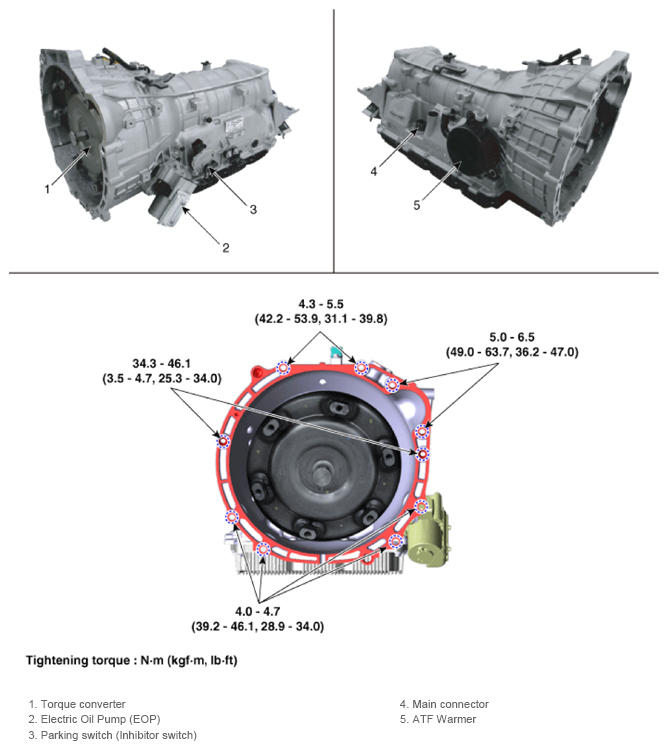

Fig 1: Automatic Transmission System Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
