AWD ECU Terminal Function

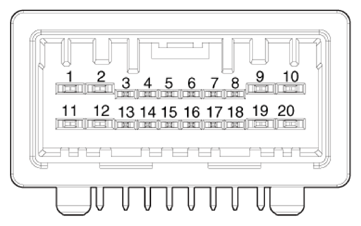

[AWD ECU connector]

G13424159

Courtesy of KIA MOTORS AMERICA, INC.

Pin	Description
1	Motor B
2	Motor A
5	Pressure sensor supply
7	IG1
8	Motor shield wire ground
9	Battery ground
10	Battery
14	Pressure sensor signal
15	Pressure sensor ground
17	CAN HIGH
18	CAN LOW
