Repair Procedures: Removal

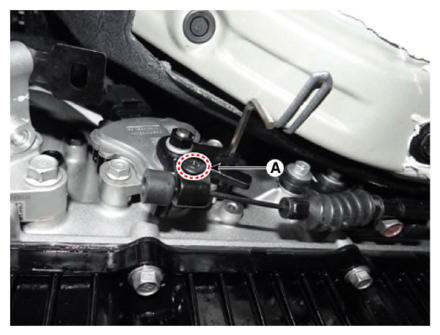

  1. Remove the parking release cable after loosening the fastener (A).
    G13423788Courtesy of KIA MOTORS AMERICA, INC.

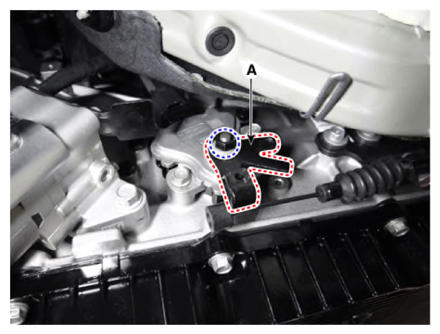

  2. Remove the parking release lever (A) after loosening the nut.
    G13423789Courtesy of KIA MOTORS AMERICA, INC.

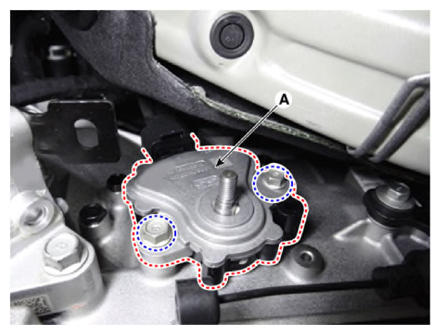

  3. Remove the parking switch (A) after loosening the bolts.
    G13423790Courtesy of KIA MOTORS AMERICA, INC.

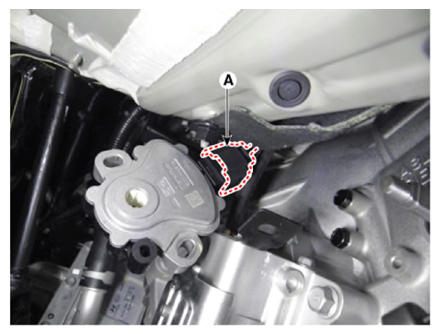

  4. Disconnect the parking switch connector (A).
    G13423791Courtesy of KIA MOTORS AMERICA, INC.
