Integrated Body control Unit (IBU)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

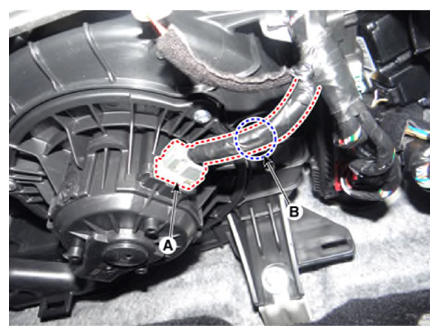

  3. Disconnect the blower motor connector (A) after removing the mounting clip (B).
    G13426877Courtesy of KIA MOTORS AMERICA, INC.

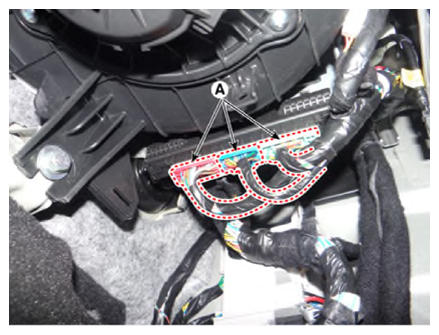

  4. Disconnect the integrated body control unit connectors (A).
    G13426878Courtesy of KIA MOTORS AMERICA, INC.

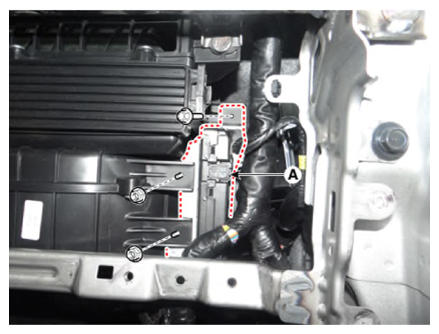

  5. Remove the integrated body control unit (A) after loosening the mounting nuts and bolt.
    G13426879Courtesy of KIA MOTORS AMERICA, INC.

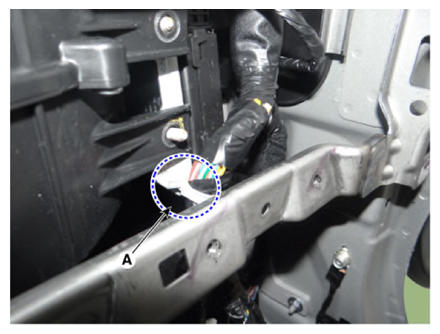

  6. Remove the wiring harness mounting clip (A) from the integrated body control unit.
    G13426880Courtesy of KIA MOTORS AMERICA, INC.
