Repair Procedures: Removal

Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")
After loosening each mounting bolt of the low-pitch horn (A) and high-pitch horn (B), detach the connector (C) and remove the horn.

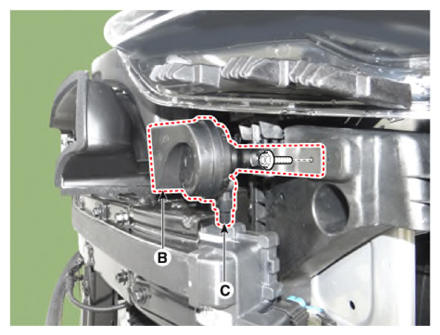

[Low - Pitch Horn]

Courtesy of KIA MOTORS AMERICA, INC.

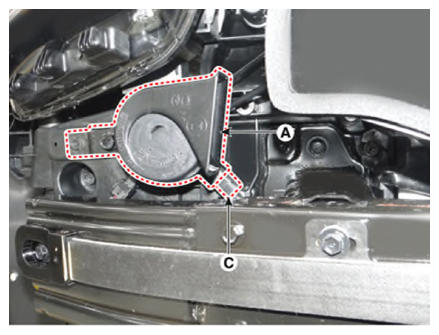

[High - Pitch Horn]

Courtesy of KIA MOTORS AMERICA, INC.
