Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the drive belt.

    (Refer to Engine Mechanical System - "DRIVE BELT ")

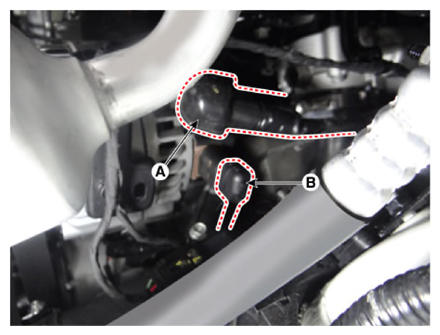

  3. Disconnect the alternator connector (B), and remove the cable (A) from alternator "B" terminal.
    G13423649Courtesy of KIA MOTORS AMERICA, INC.

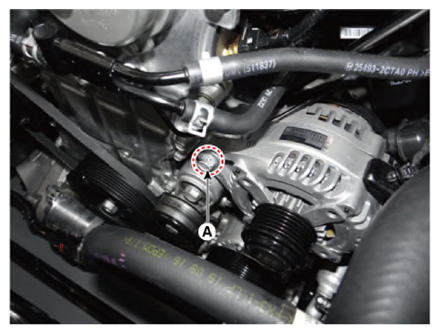

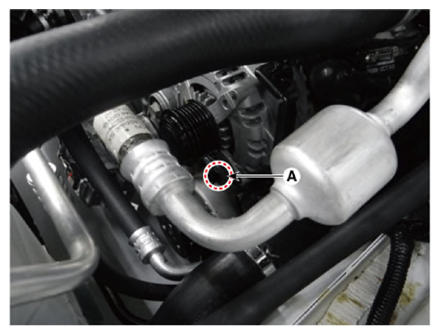

  4. Remove the alternator lower bolt and upper bolt (A).
    G13423650Courtesy of KIA MOTORS AMERICA, INC.
    G13423651Courtesy of KIA MOTORS AMERICA, INC.

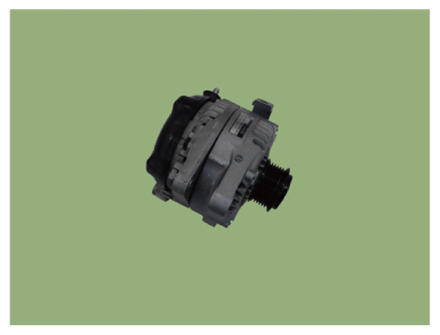

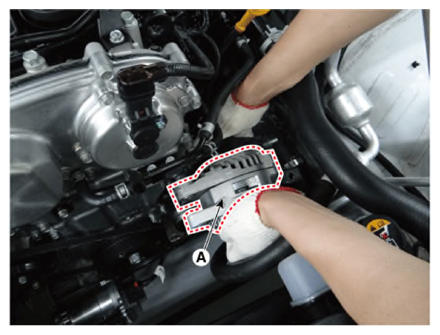

  5. Remove the alternator (A).
    G13423652Courtesy of KIA MOTORS AMERICA, INC.
    G13423653Courtesy of KIA MOTORS AMERICA, INC.
