Repair Procedures: Removal

  1. Turn the ignition switch OFF.

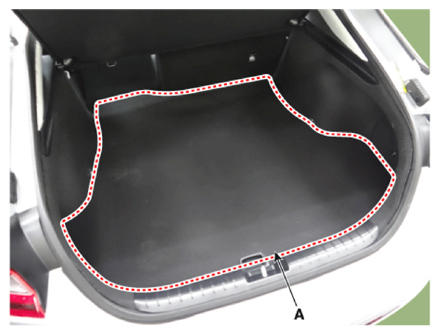

  2. Remove the luggage covering (A).
    G13423609Courtesy of KIA MOTORS AMERICA, INC.

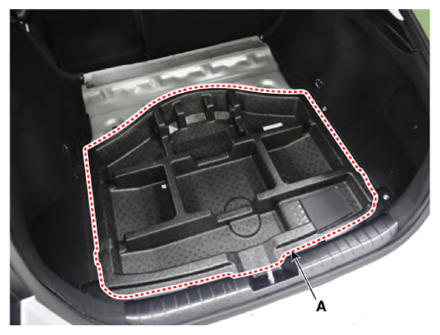

  3. Remove the luggage center tray (A).
    G13423610Courtesy of KIA MOTORS AMERICA, INC.

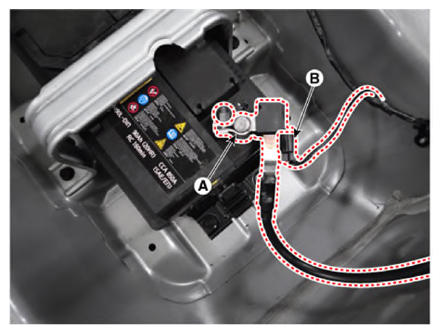

  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
    G13423611Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the battery sensor by loosening the mounting bolts (C).
    G13423612Courtesy of KIA MOTORS AMERICA, INC.
