Repair Procedures: Removal

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the LH engine mounting support bracket.
(Refer to Engine Mechanical System - "ENGINE MOUNTING ")

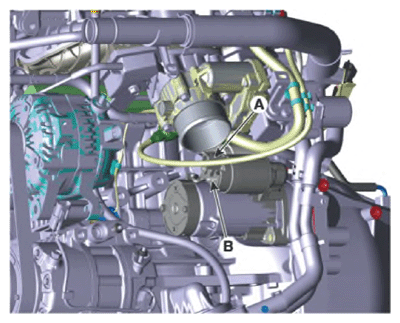

Remove the stater solenoid "B" terminal mounting nut (B), and then disconnect the stater cable and ST connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

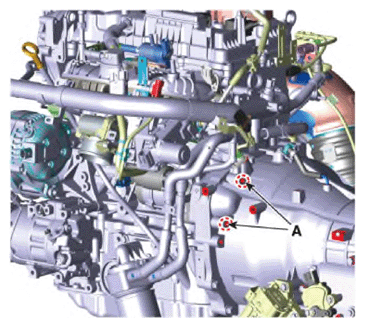

Remove the starter after loosening the mounting bolt (A).

Courtesy of KIA MOTORS AMERICA, INC.
