Repair procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

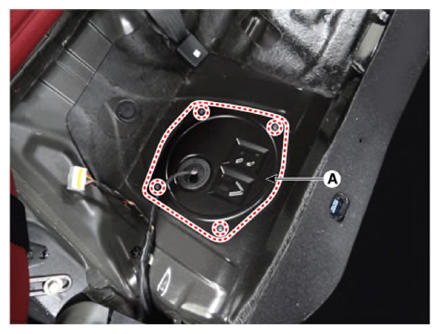

  3. Remove the sub fuel sender service cover (A) after loosening the mounting screws.
    G13428194Courtesy of KIA MOTORS AMERICA, INC.

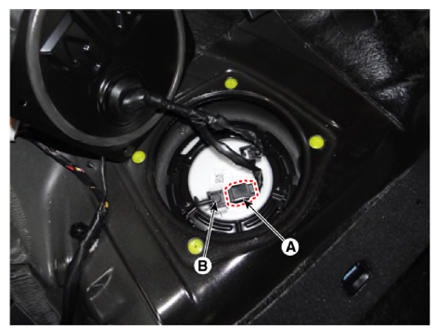

  4. Disconnect the fuel tank pressure sensor conector (A).
  5. Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
    G13428195Courtesy of KIA MOTORS AMERICA, INC.
