Repair procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Disconnect the RCV control solenoid valve connector (A) and vapor hoses (B).
  3. Remove the RCV control solenoid valve (C).

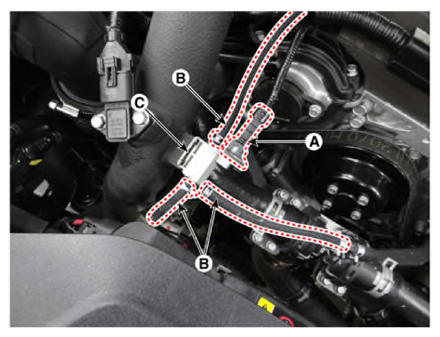

G13428238Courtesy of KIA MOTORS AMERICA, INC.
