Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the liftgate lower trim.

    (Refer to Body - "LIFTGATE TRIM ")

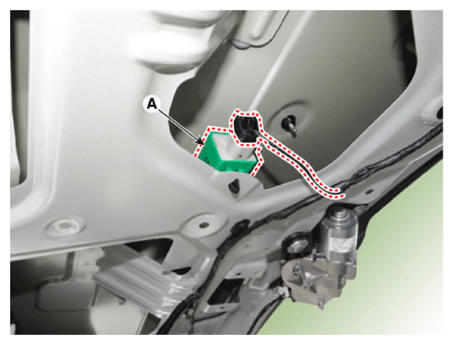

  3. Remove the buzzer (A) after disconnecting the connector.
G13312385Courtesy of KIA MOTORS AMERICA, INC.
