Mode Change (Power Liftgate System)

After replacing with a new power liftgate module, check for DTC code at all times.
If DTC code B24B0 exists, perform power liftgate mode change.

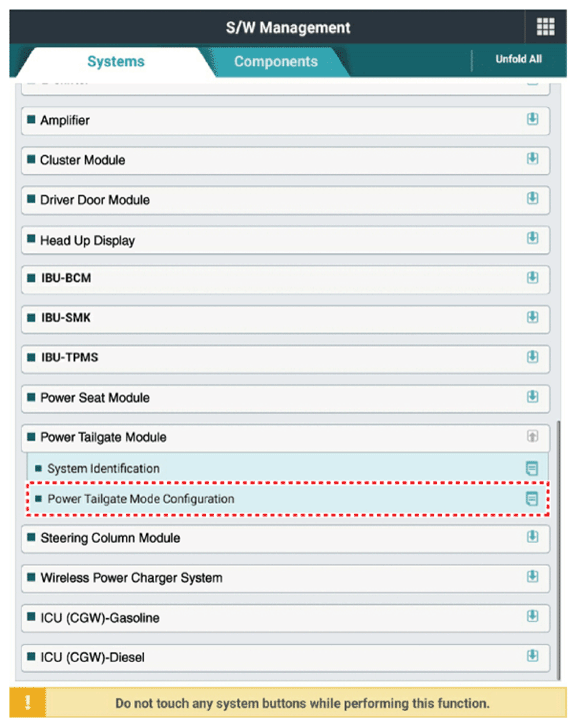

After connecting the KDS, select the "Power Liftgate Mode Change" procedure.

Courtesy of KIA MOTORS AMERICA, INC.

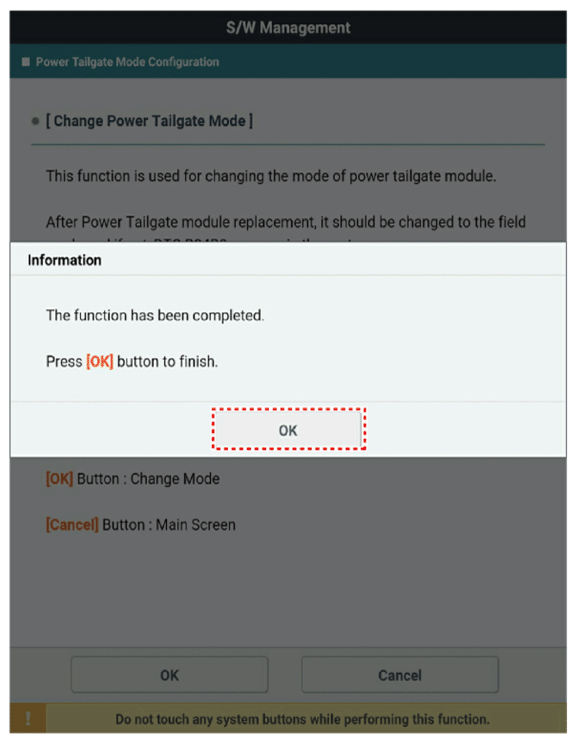

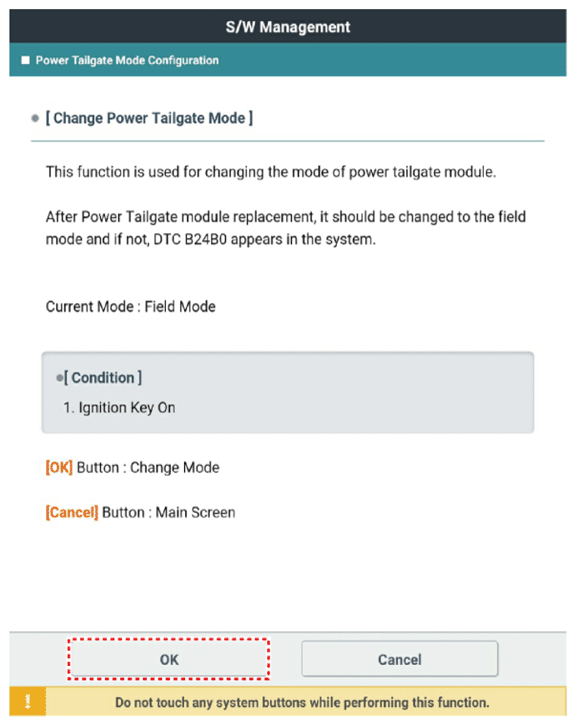

Perform the liftgate mode change procedure according to displayed messages on KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION:

If power liftgate system is operated with factory mode, it makes the abnormal warning sound.
