Ignition Switch/Steering Lock
›
Button Engine Start System
›
Start/Stop Button
›
Schematic Diagrams
›

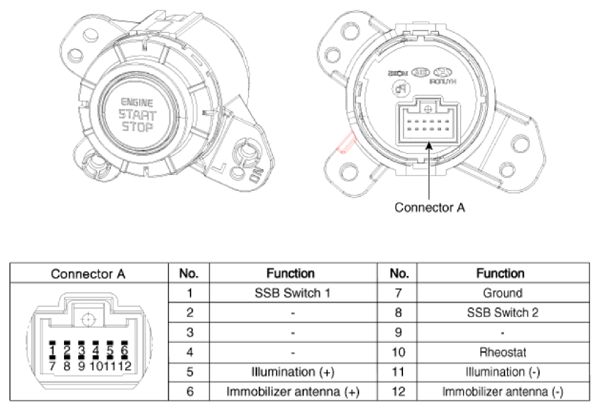

Connector and Terminal function
Connector and Terminal function
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
