Battery Tray
- Remove the battery.
(Refer to Battery System - "BATTERY ")

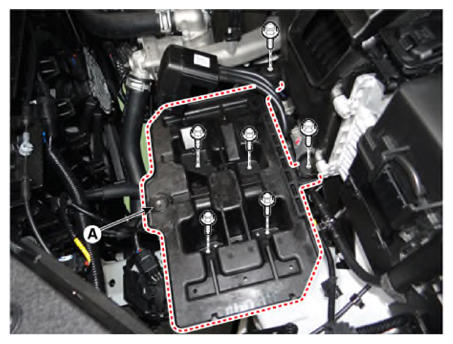

- Remove the battery tray (A) after loosening the mounting bolts.
Tightening torque:
9.0 - 14.0 N.m (0.9 - 1.4 kgf.m, 6.6 - 10.3 lb.ft)
(Refer to Battery System - "BATTERY ")
Tightening torque:
9.0 - 14.0 N.m (0.9 - 1.4 kgf.m, 6.6 - 10.3 lb.ft)
