Repair Procedures: Installation

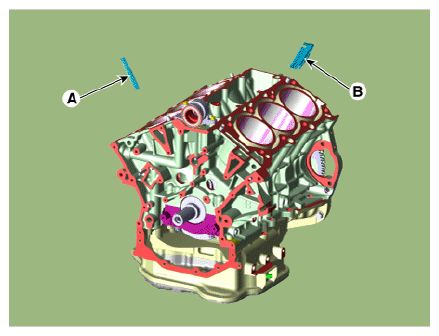

Install the water jacket separator #1 (A), #2 (B).

Courtesy of KIA MOTORS AMERICA, INC.

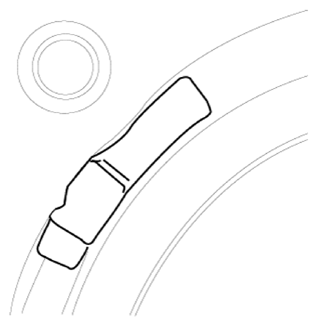

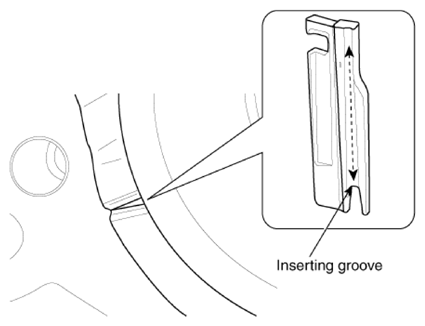

NOTE: Insert the separator by aligning it with the block inner side protrusion. It must be below the cylinder head installing surface.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Install the LH/RH cylinder head assembly and gasket.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD ")
