Repair Procedures: Removal

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

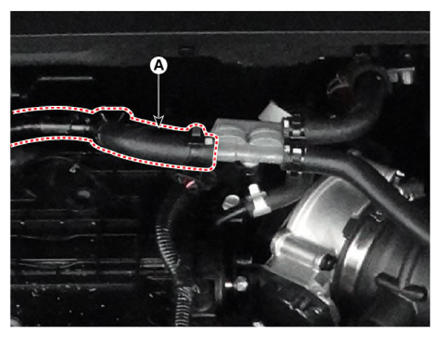

Disconnect the vacuum hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

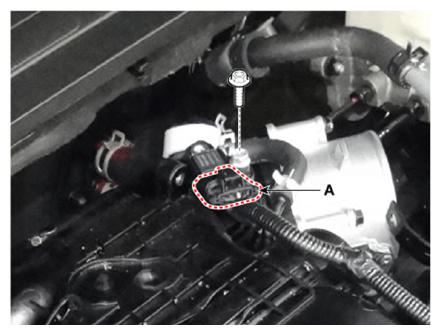

Disconnect the manifold absolute pressure sensor connector (A).
Remove the sensor after loosening the mounting bolt.
Manifold Absolute Pressure Sensor (MAPS) mounting bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
