Variable Force Solenoid (VFS) [Bank 1/Intake]

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

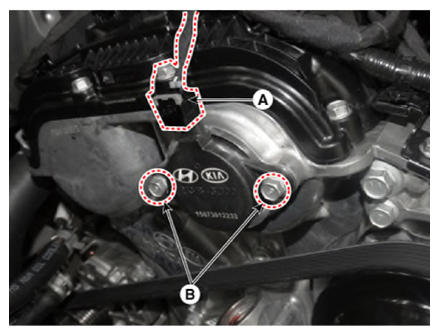

Disconnect the VFS connector (A).
Remove the mounting bolts (B), and then remove the VFS from the engine.
Variable force solenoid mounting bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
