Repair Procedures: Removal

Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")

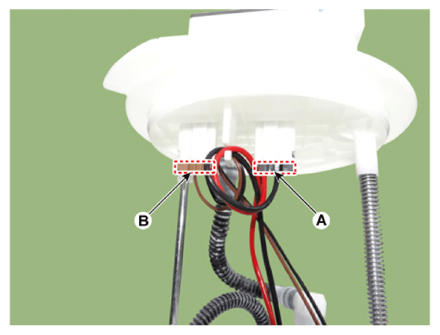

Remove the fuel pump motor connector (A) and fuel sender connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

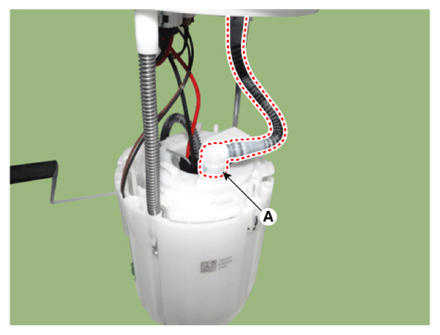

Remove the fixing clip, and then disconnect the feed tube (A).

Courtesy of KIA MOTORS AMERICA, INC.

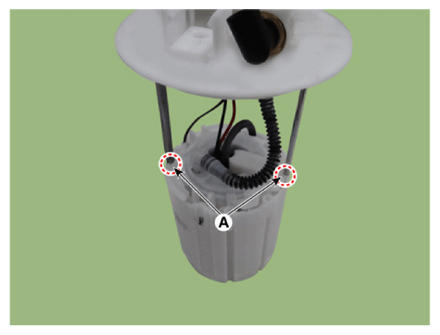

Remove the head assembly after releasing the cushion hook (A).

Courtesy of KIA MOTORS AMERICA, INC.

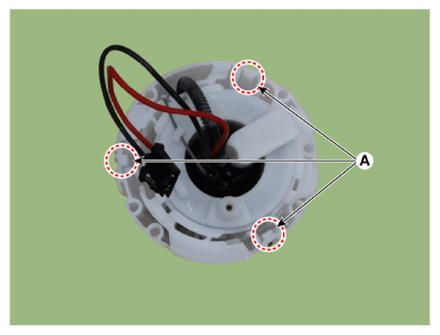

Remove the reservoir-cup after releasing the fixing hook (A).

Courtesy of KIA MOTORS AMERICA, INC.

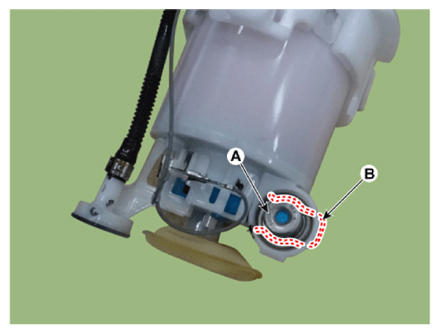

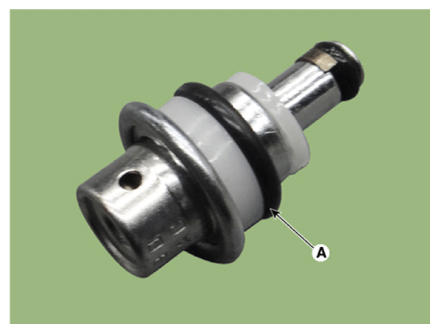

Remove the fuel pressure regulator (A) after releasing the fixing pin (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
