Repair Procedures: Removal

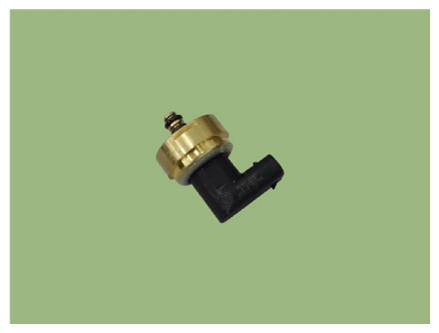

G13310186Courtesy of KIA MOTORS AMERICA, INC.
  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

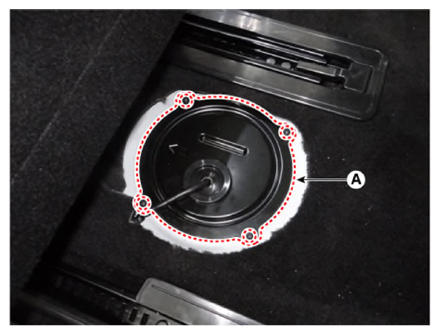

  3. Remove the fuel pump service cover (A).
    G13310187Courtesy of KIA MOTORS AMERICA, INC.

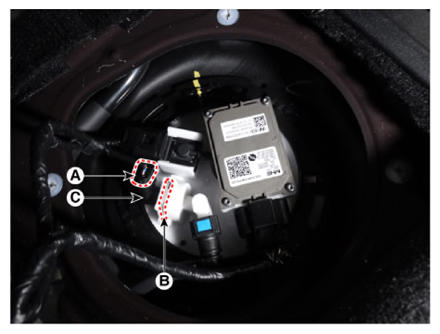

  4. Disconnect the fuel pressure sensor connector (A).
  5. Remove the fuel pressure sensor fixing pin (B).
  6. Remove the fuel pressure sensor (C) from the fuel pump.
    G13310188Courtesy of KIA MOTORS AMERICA, INC.
