Circuit Inspection

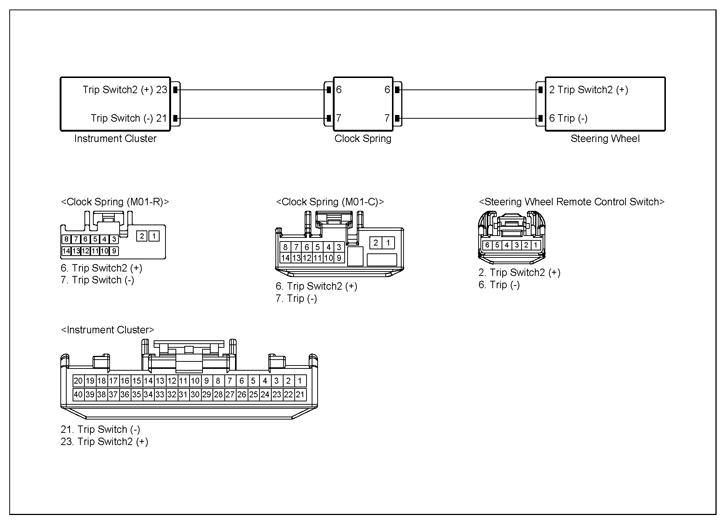

G13334673

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component and cluster. Ignition "ON".	Steering wheel remote switch connector	2 (trip +)	Chassis ground	-	Approx. 0V
	Steering wheel remote switch connector	6 (trip -)	Chassis ground	-	Approx. 0V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component and cluster.	Steering wheel remote switch connector	2 (trip +)	Cluster connector	23 (trip +)	Approx. below 1Ω
	Steering wheel remote switch connector	6 (trip -)	Cluster connector	21 (trip -)	Approx. below 1Ω
	Steering wheel remote switch connector	2 (trip +)	Chassis ground	-	∞ (infinity)Ω
	Steering wheel remote switch connector	6 (trip -)	Chassis ground	-	∞ (infinity)Ω

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the cruise remote switch and go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
