Component Inspection

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference
Engine "ON"	Injector #1 connector	1 (high)	Chassis ground	-	Fig. 1
Engine "ON"	Injector #1 connector	2 (low)	Chassis ground	-	Fig. 1
Engine "ON"	Injector #2 connector	1 (high)	Chassis ground	-	Fig. 1
Engine "ON"	Injector #2 connector	2 (low)	Chassis ground	-	Fig. 1
Engine "ON"	Injector #3 connector	1 (high)	Chassis ground	-	Fig. 1
Engine "ON"	Injector #3 connector	2 (low)	Chassis ground	-	Fig. 1
Engine "ON"	Injector #4 connector	1 (high)	Chassis ground	-	Fig. 1
Engine "ON"	Injector #4 connector	2 (low)	Chassis ground	-	Fig. 1
Engine "ON"	Injector #5 connector	1 (high)	Chassis ground	-	Fig. 1
Engine "ON"	Injector #5 connector	2 (low)	Chassis ground	-	Fig. 1
Engine "ON"	Injector #6 connector	1 (high)	Chassis ground	-	Fig. 1
Engine "ON"	Injector #6 connector	2 (low)	Chassis ground	-	Fig. 1

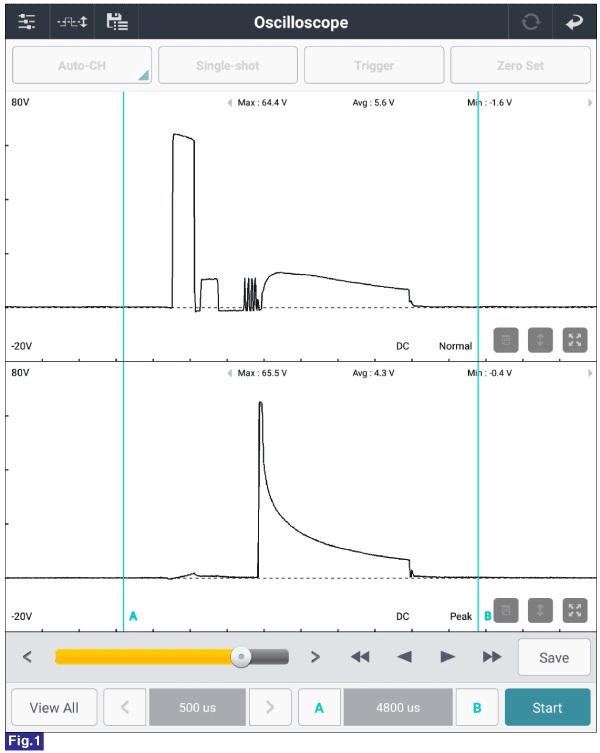

G00613778

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "System Inspection " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the injector #1 and go to "Verification Of Repair " procedure.
