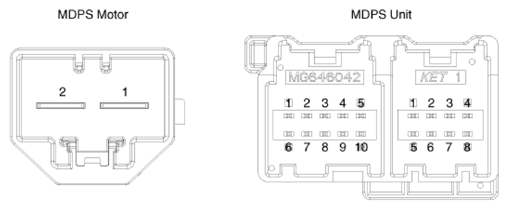

Terminal Function

Courtesy of KIA MOTORS AMERICA, INC.

Type	Pin No	Description
MDPS power connector	1	Battery +
MDPS power connector	2	Battery -
Vehicle connector	1	IGN
	2	-
	3	-
	4	-
	5	-
	6	-
	7	HIGH CAN
	8	LOW CAN
Torque & Angle sensor connector	1	Torque sensor 2
	2	-
	3	-
	4	Sensor power 3
	5	Sensor power 2
	6	Sensor power 1
	7	Ground 1
	8	Torque sensor 1
	9	Ground 2
	10	Sensor angle
