Repair Procedures: Replacement

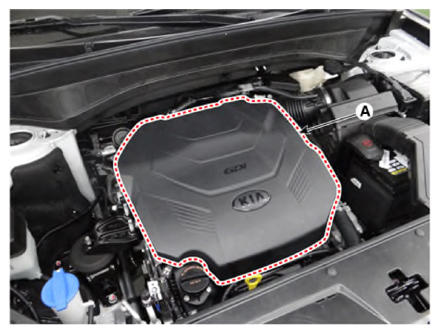

Remove the engine cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Lift up the lower end of engine cover, then left and right alternately.
- When installing, check that the mounting rubber insulators are installed.
Install in the reverse order of removal.
