Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

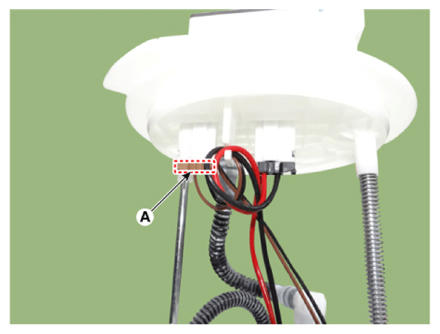

  2. Disconnect the fuel sender connector (A).
    G13310165Courtesy of KIA MOTORS AMERICA, INC.

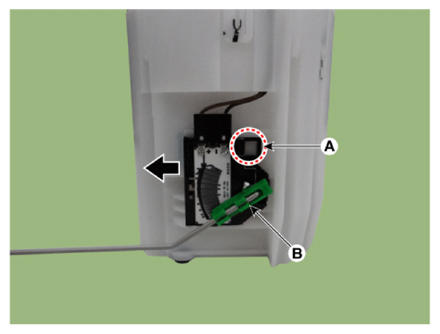

  3. Remove the fuel sender (B) after releasing the fixing hook (A).
    G13310166Courtesy of KIA MOTORS AMERICA, INC.
