Vehicle S/W Management

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.	Figures 1 to 10 below

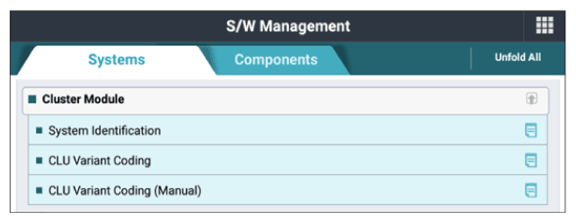

G13332971

Courtesy of KIA MOTORS AMERICA, INC.

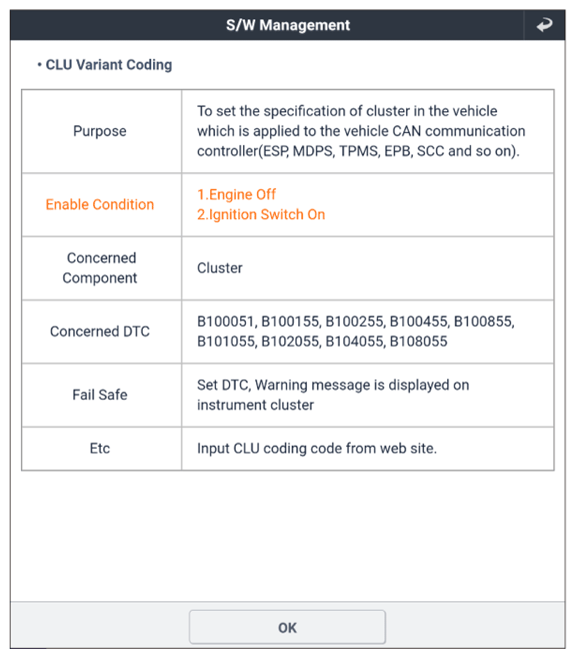

G13332972

Courtesy of KIA MOTORS AMERICA, INC.

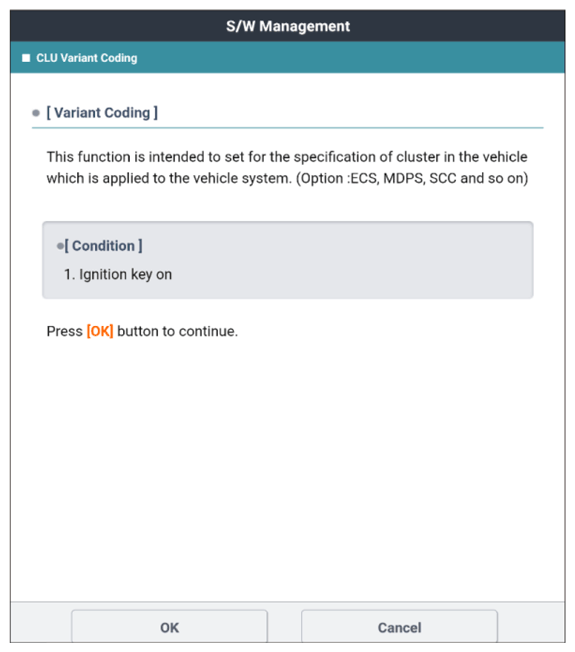

G13332973

Courtesy of KIA MOTORS AMERICA, INC.

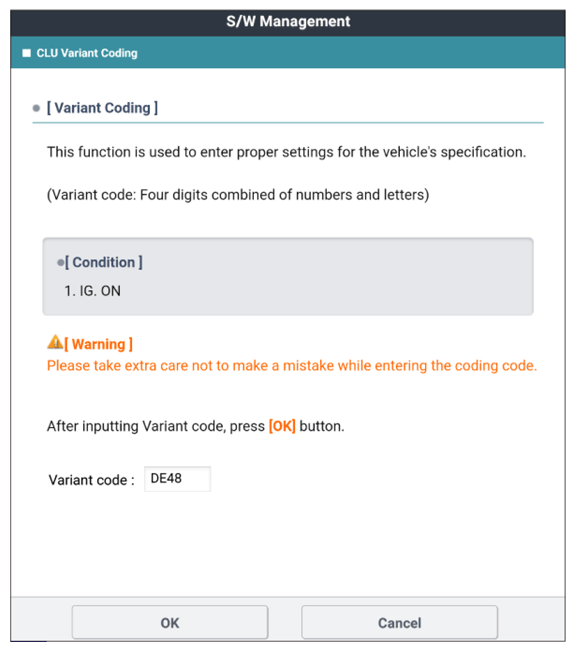

G13332974

Courtesy of KIA MOTORS AMERICA, INC.

G13332975

Courtesy of KIA MOTORS AMERICA, INC.

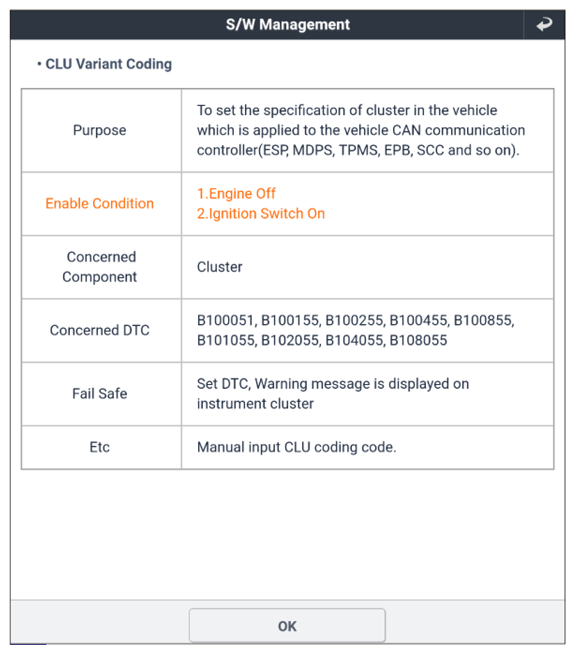

G13332976

Courtesy of KIA MOTORS AMERICA, INC.

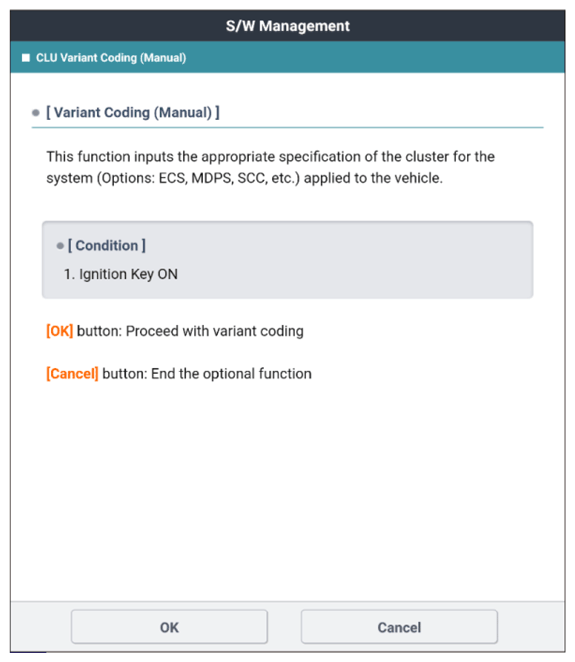

G13332977

Courtesy of KIA MOTORS AMERICA, INC.

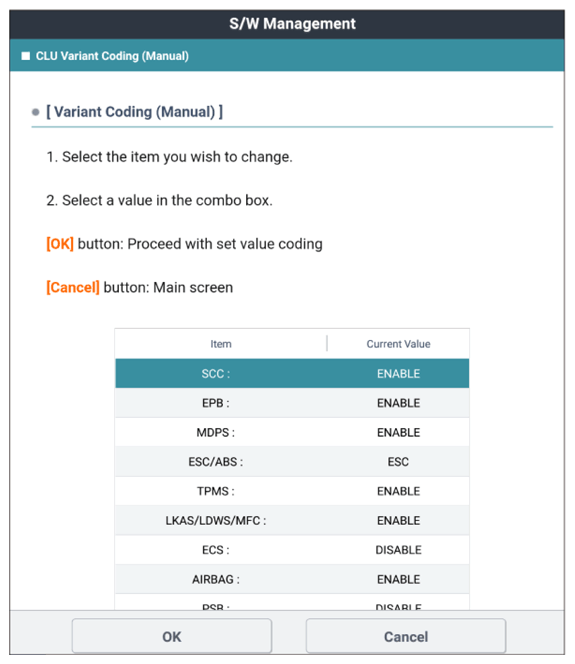

G13332978

Courtesy of KIA MOTORS AMERICA, INC.

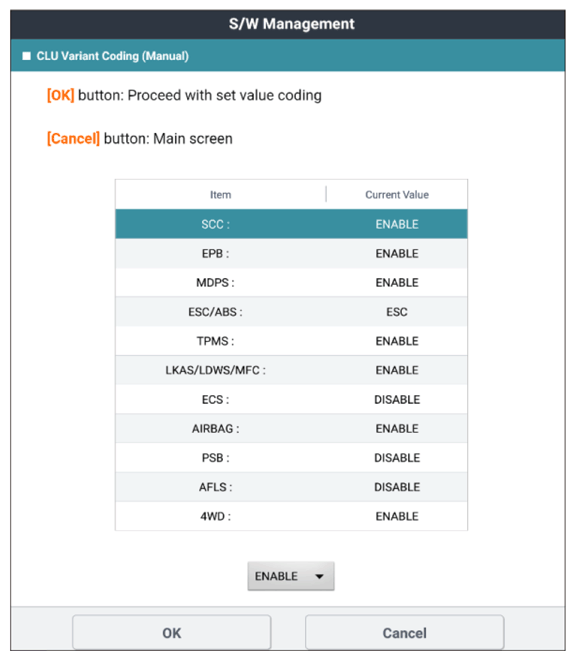

G13332979

Courtesy of KIA MOTORS AMERICA, INC.

G13332980

Courtesy of KIA MOTORS AMERICA, INC.
