Vehicle S/W Management

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.	Figures 1 to 10 below

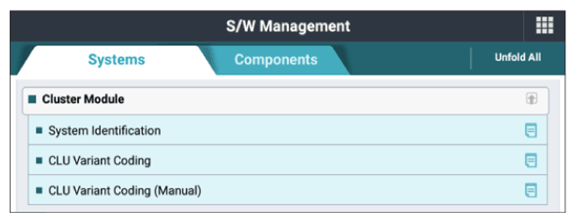

G13333001

Courtesy of KIA MOTORS AMERICA, INC.

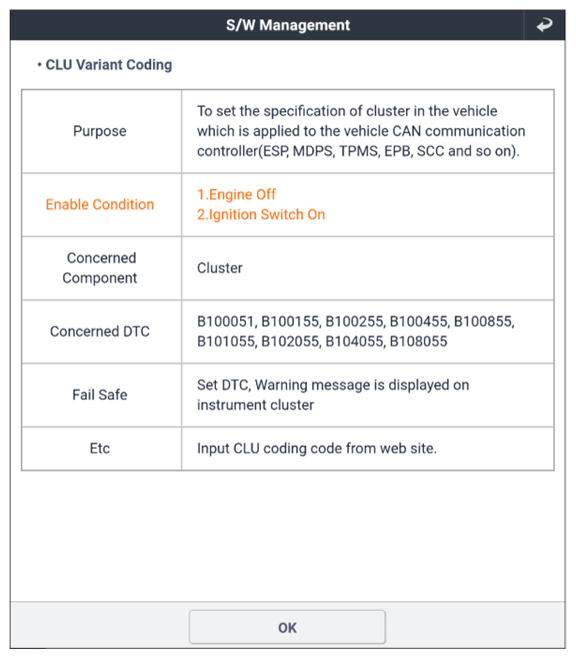

G13333002

Courtesy of KIA MOTORS AMERICA, INC.

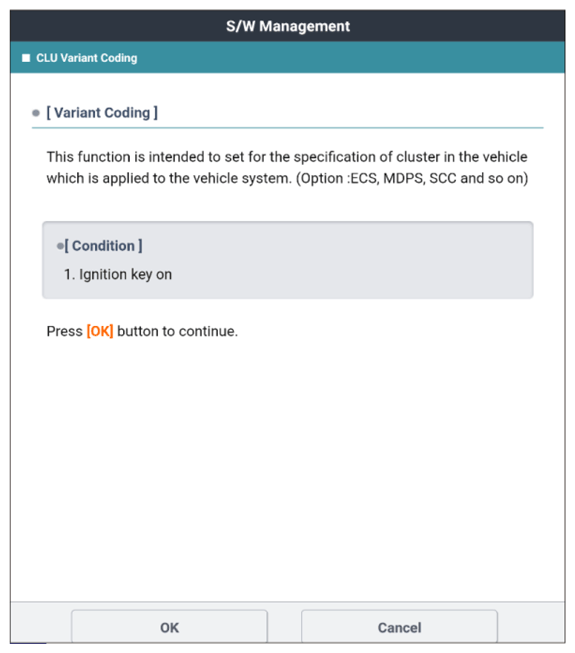

G13333003

Courtesy of KIA MOTORS AMERICA, INC.

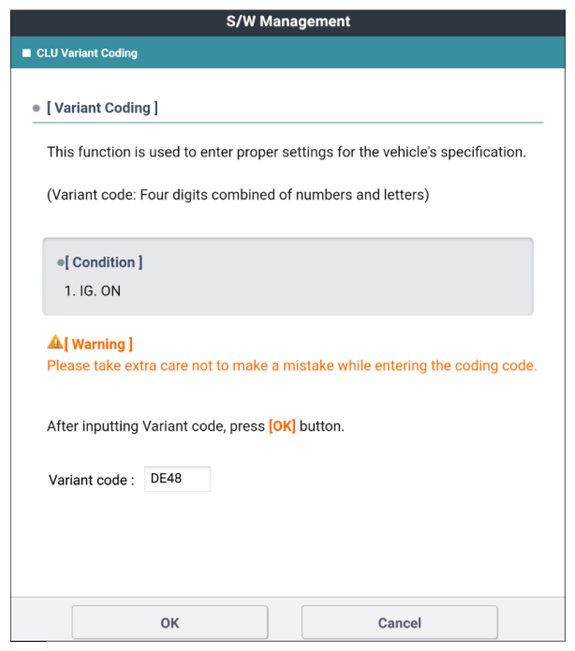

G13333004

Courtesy of KIA MOTORS AMERICA, INC.

G13333005

Courtesy of KIA MOTORS AMERICA, INC.

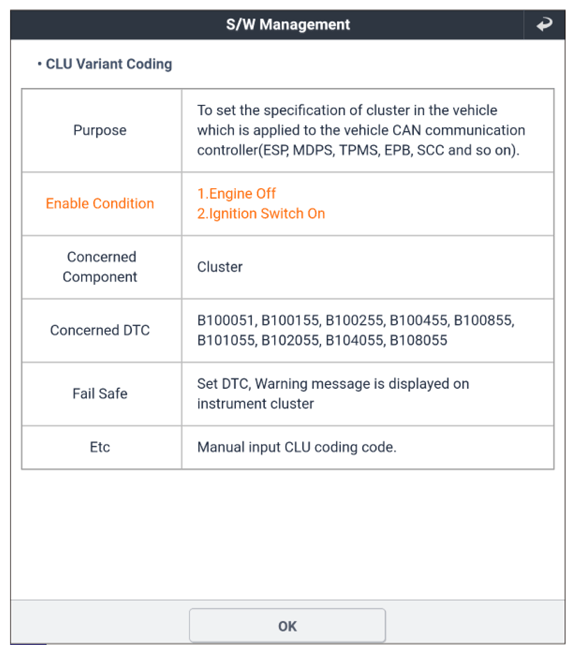

G13333006

Courtesy of KIA MOTORS AMERICA, INC.

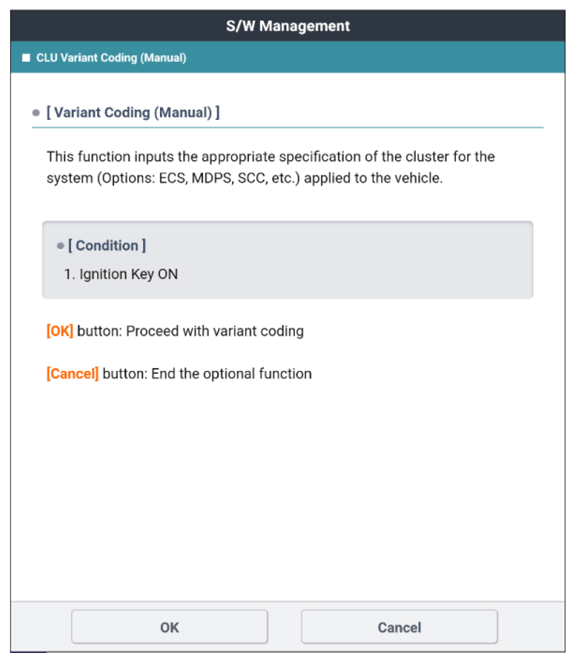

G13333007

Courtesy of KIA MOTORS AMERICA, INC.

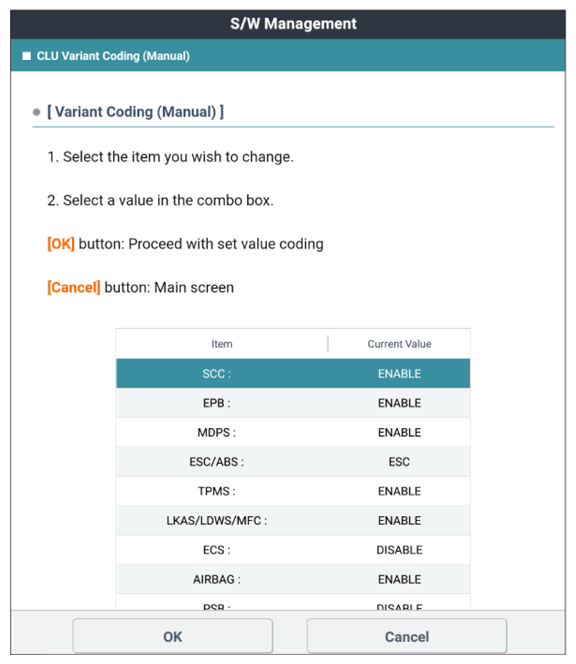

G13333008

Courtesy of KIA MOTORS AMERICA, INC.

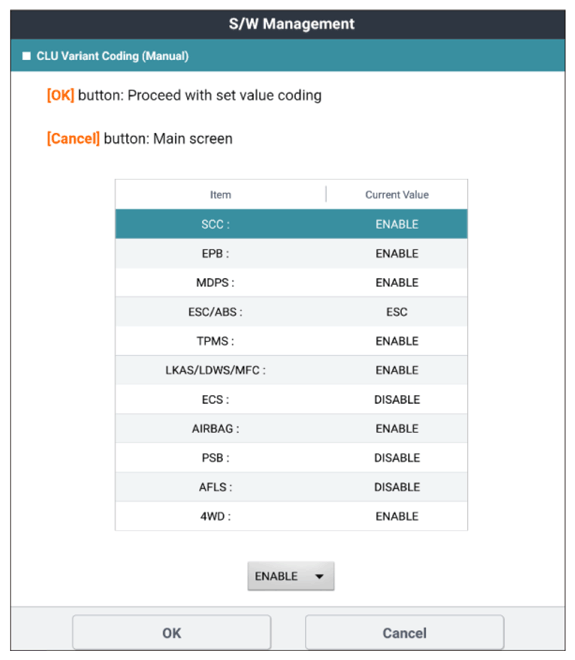

G13333009

Courtesy of KIA MOTORS AMERICA, INC.

G13333010

Courtesy of KIA MOTORS AMERICA, INC.
