Vehicle S/W Management

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.	Figures 1 to 10 below

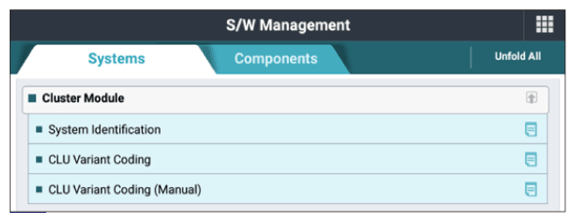

G13333031

Courtesy of KIA MOTORS AMERICA, INC.

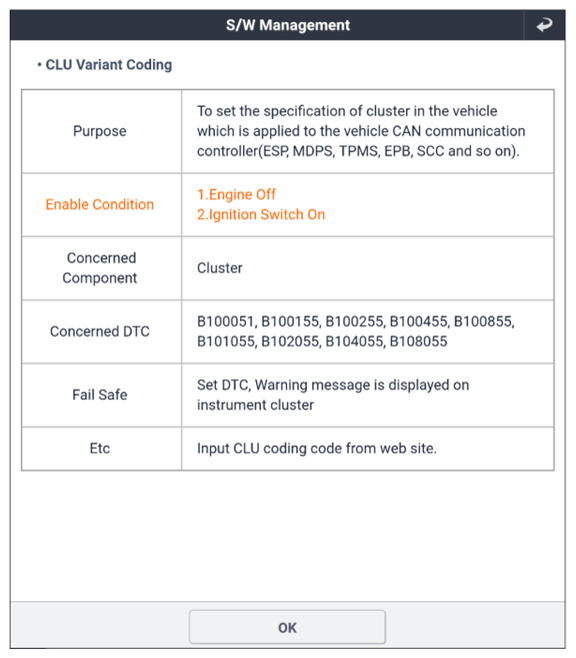

G13333032

Courtesy of KIA MOTORS AMERICA, INC.

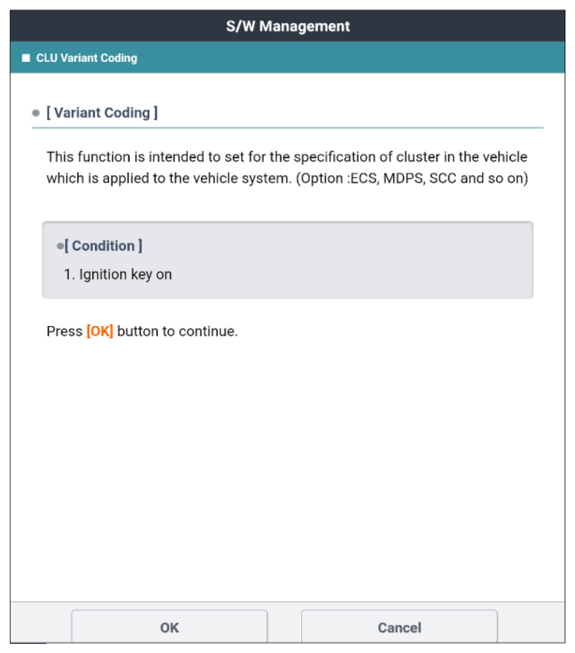

G13333033

Courtesy of KIA MOTORS AMERICA, INC.

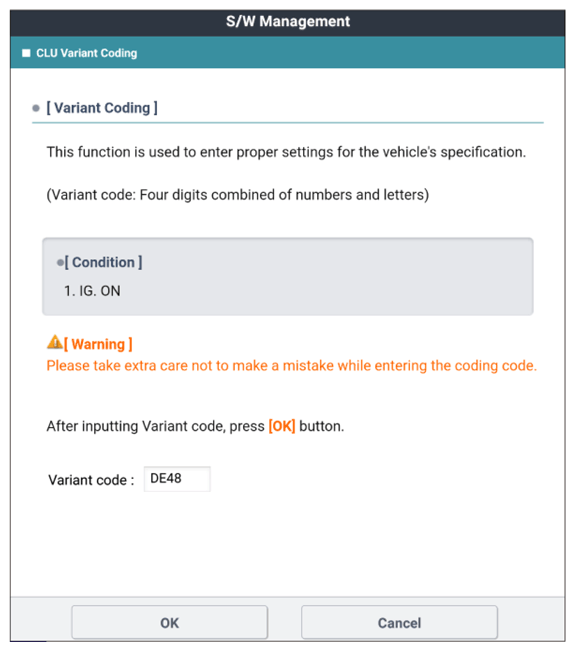

G13333034

Courtesy of KIA MOTORS AMERICA, INC.

G13333035

Courtesy of KIA MOTORS AMERICA, INC.

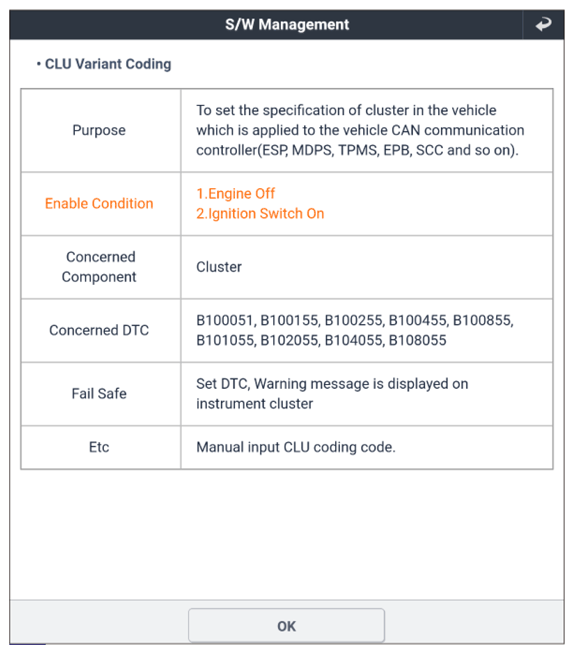

G13333036

Courtesy of KIA MOTORS AMERICA, INC.

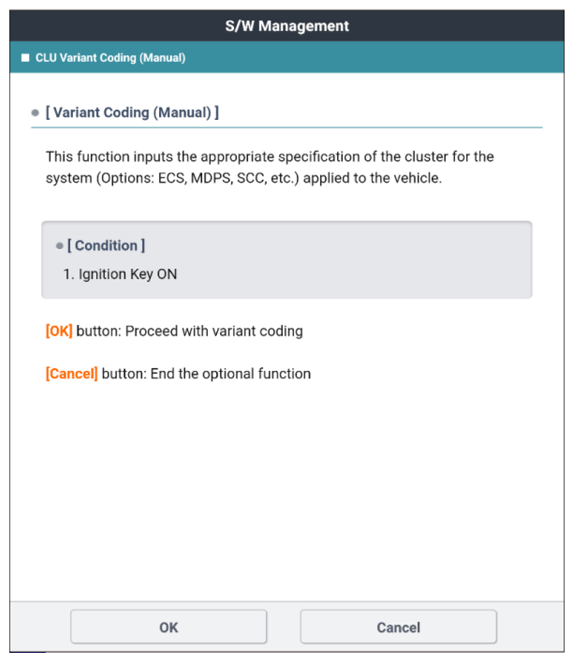

G13333037

Courtesy of KIA MOTORS AMERICA, INC.

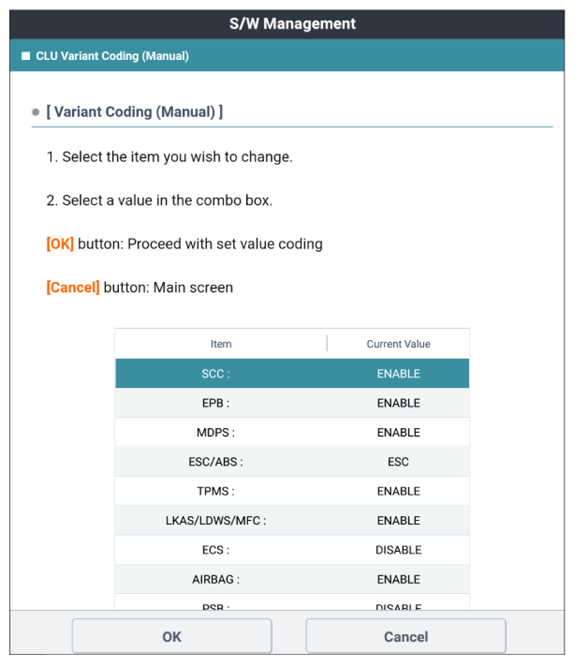

G13333038

Courtesy of KIA MOTORS AMERICA, INC.

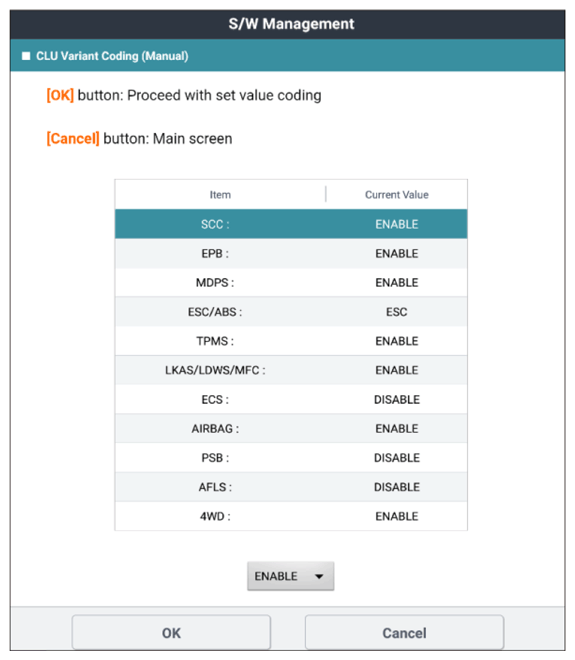

G13333039

Courtesy of KIA MOTORS AMERICA, INC.

G13333040

Courtesy of KIA MOTORS AMERICA, INC.
