Vehicle S/W Management

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.	Figures 1 to 10 below

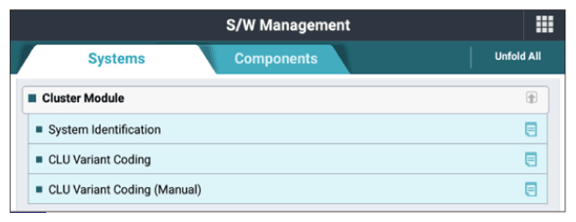

G13333091

Courtesy of KIA MOTORS AMERICA, INC.

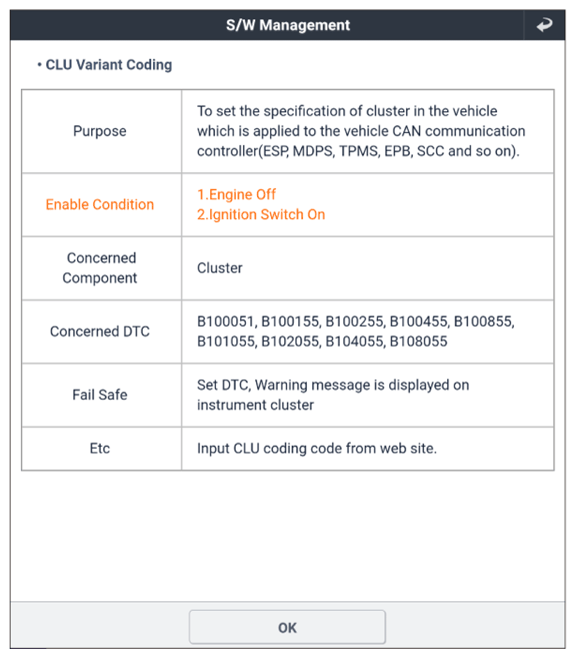

G13333092

Courtesy of KIA MOTORS AMERICA, INC.

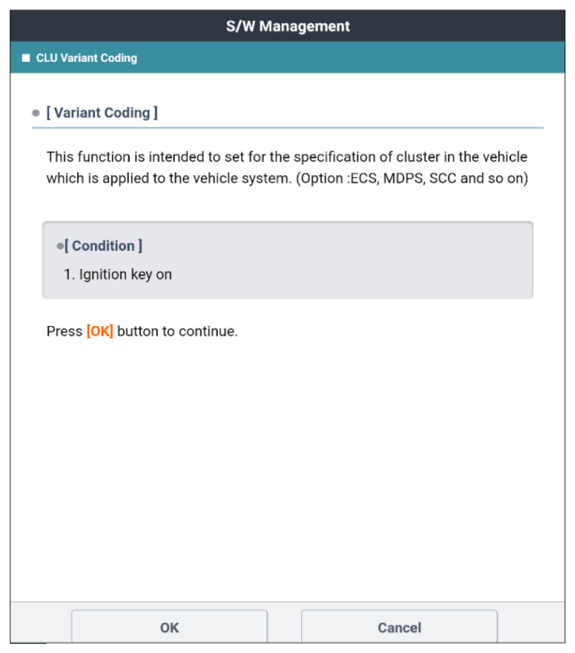

G13333093

Courtesy of KIA MOTORS AMERICA, INC.

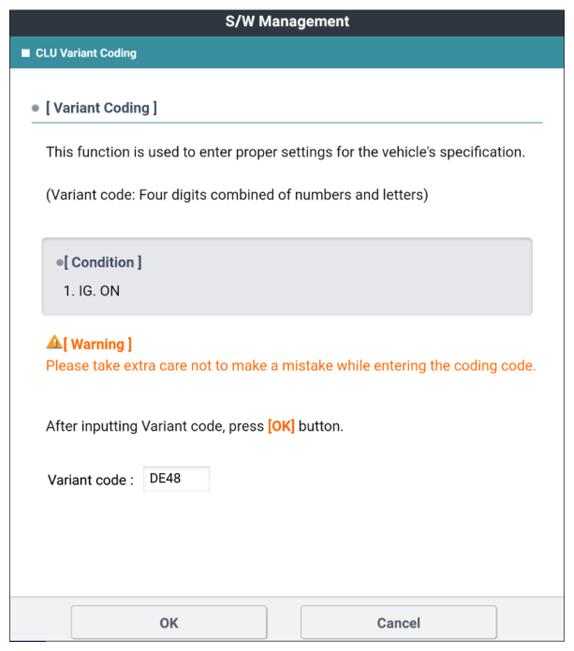

G13333094

Courtesy of KIA MOTORS AMERICA, INC.

G13333095

Courtesy of KIA MOTORS AMERICA, INC.

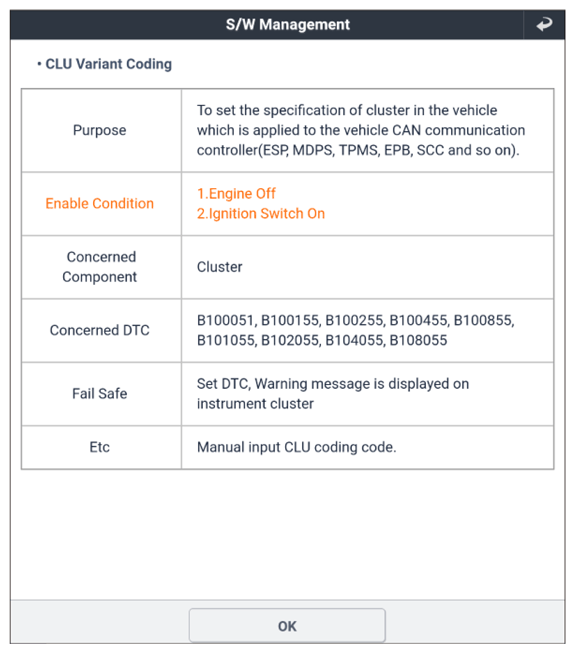

G13333096

Courtesy of KIA MOTORS AMERICA, INC.

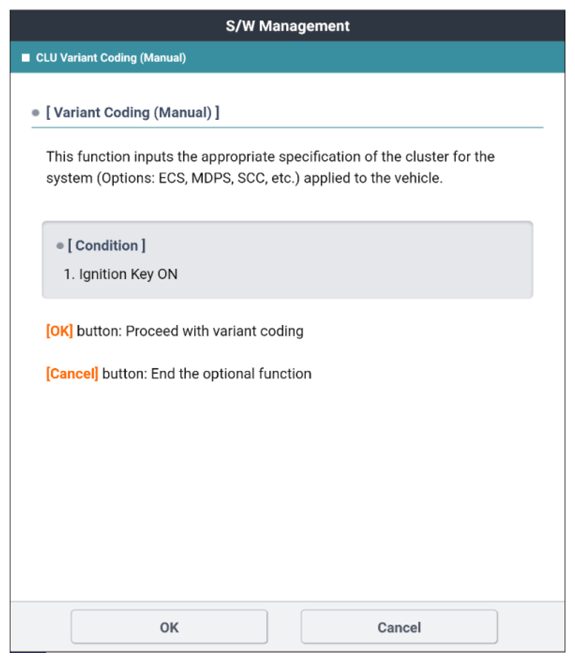

G13333097

Courtesy of KIA MOTORS AMERICA, INC.

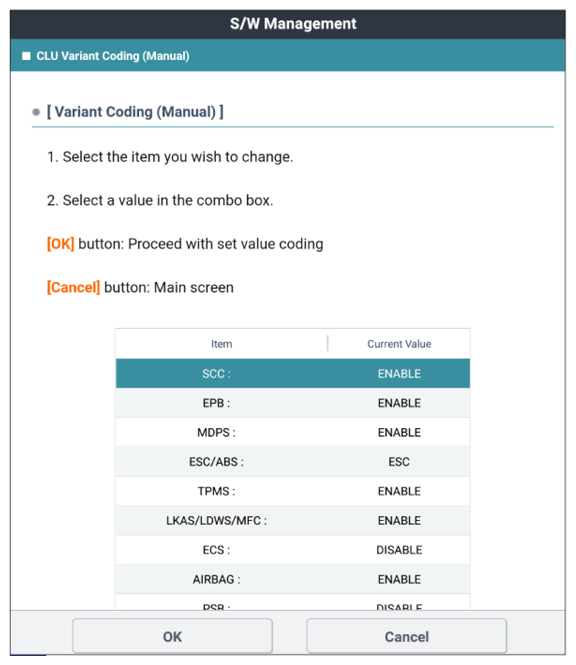

G13333098

Courtesy of KIA MOTORS AMERICA, INC.

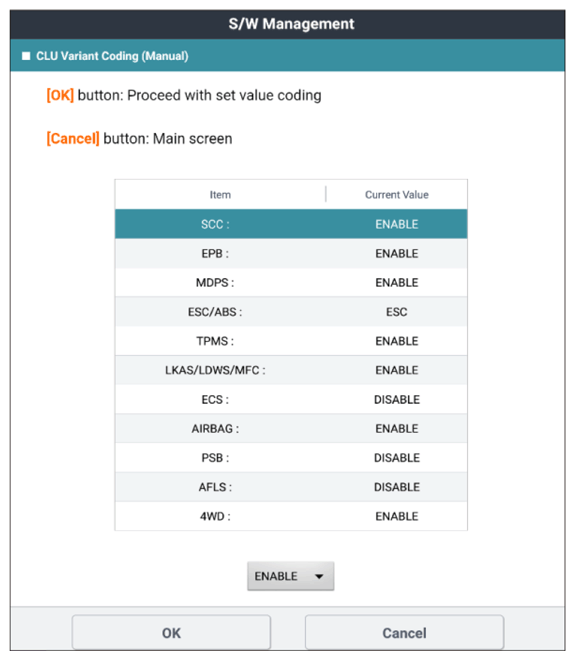

G13333099

Courtesy of KIA MOTORS AMERICA, INC.

G13333100

Courtesy of KIA MOTORS AMERICA, INC.
