Vehicle S/W Management

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.	Figures 1 to 10 below

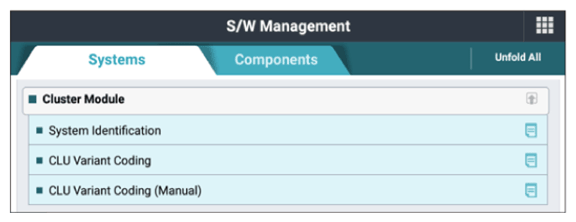

G13333125

Courtesy of KIA MOTORS AMERICA, INC.

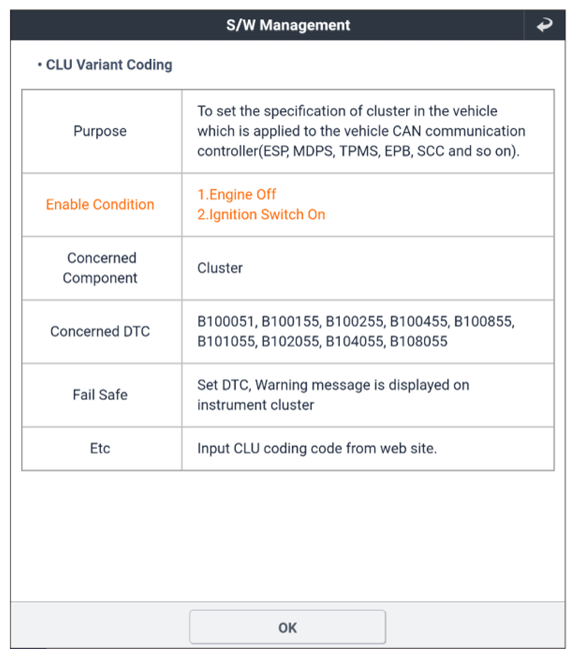

G13333126

Courtesy of KIA MOTORS AMERICA, INC.

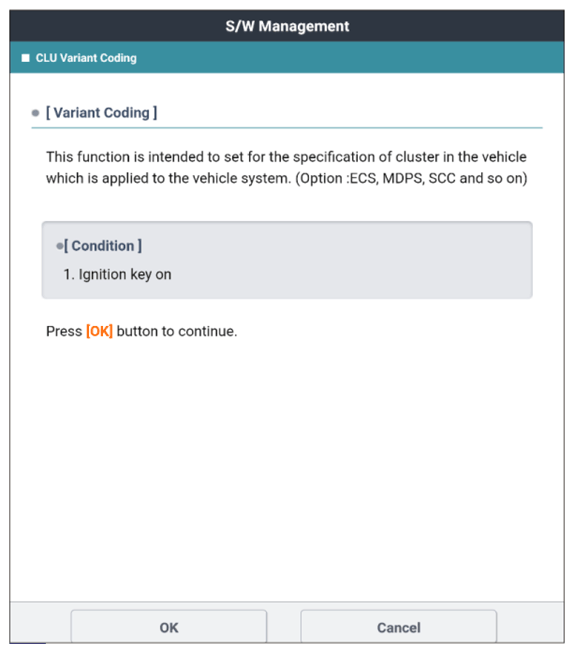

G13333127

Courtesy of KIA MOTORS AMERICA, INC.

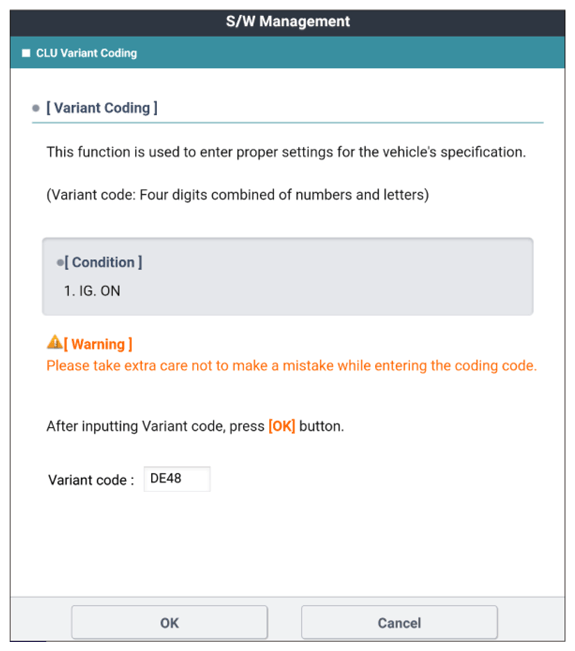

G13333128

Courtesy of KIA MOTORS AMERICA, INC.

G13333129

Courtesy of KIA MOTORS AMERICA, INC.

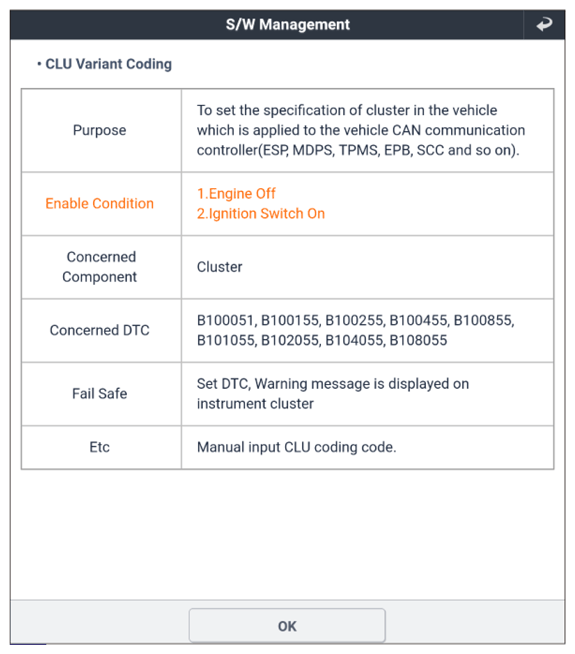

G13333130

Courtesy of KIA MOTORS AMERICA, INC.

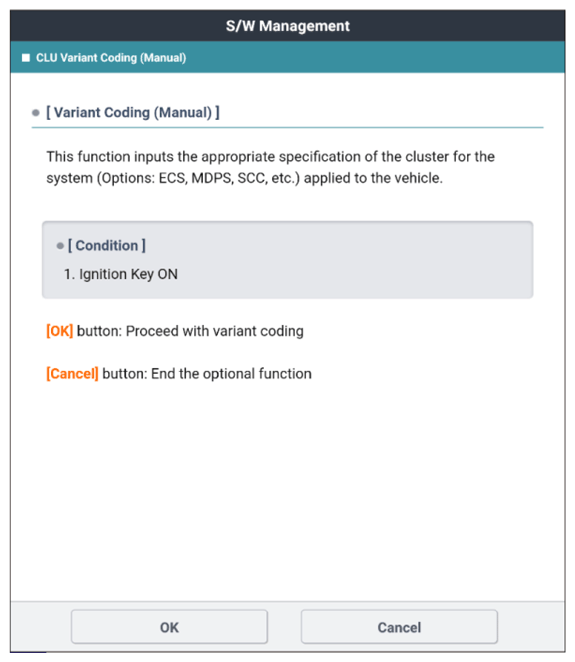

G13333131

Courtesy of KIA MOTORS AMERICA, INC.

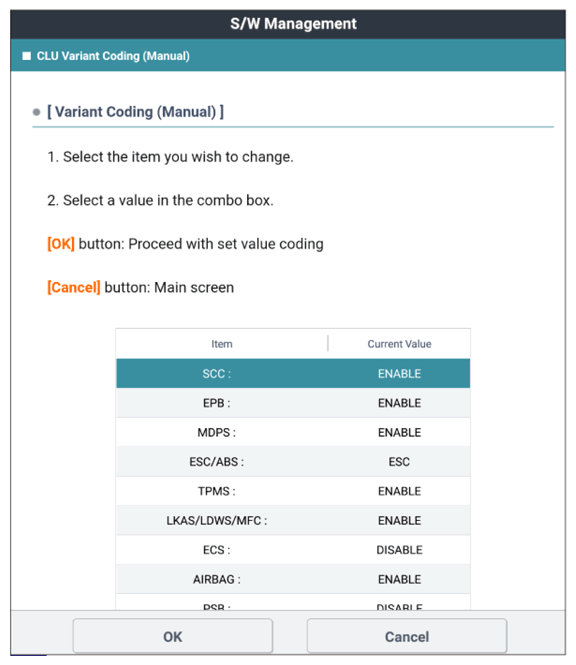

G13333132

Courtesy of KIA MOTORS AMERICA, INC.

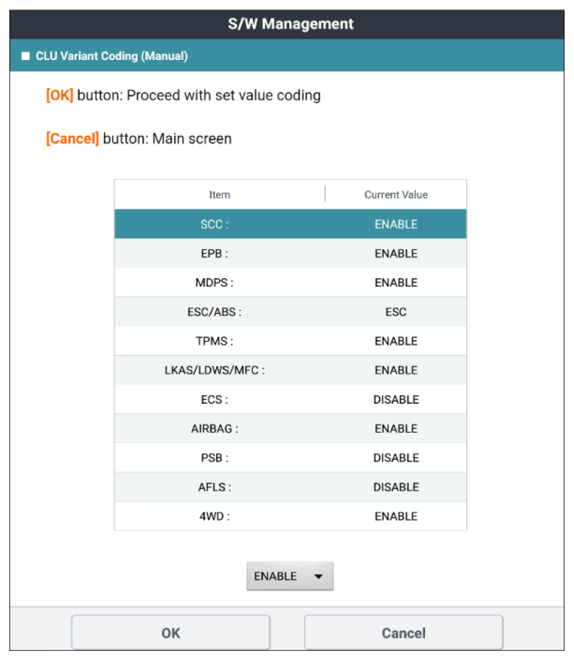

G13333133

Courtesy of KIA MOTORS AMERICA, INC.

G13333134

Courtesy of KIA MOTORS AMERICA, INC.
