Repair Procedures: Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

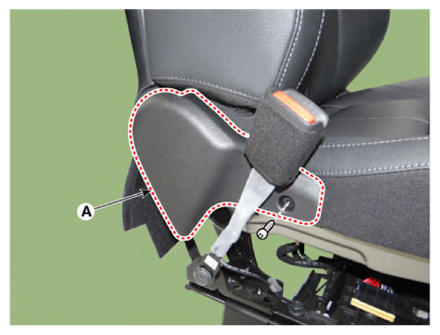

After loosening the mounting screw, remove the front seat shield inner cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.

Information

Replace any damaged clips.
