Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

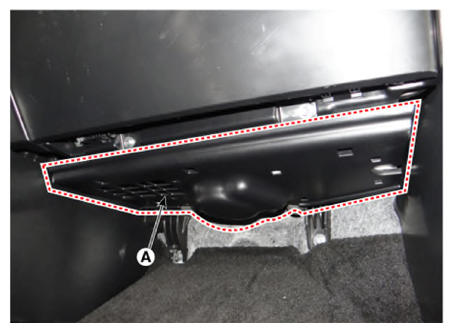

  2. Remove the crash pad under cover (A).
    G13312085Courtesy of KIA MOTORS AMERICA, INC.

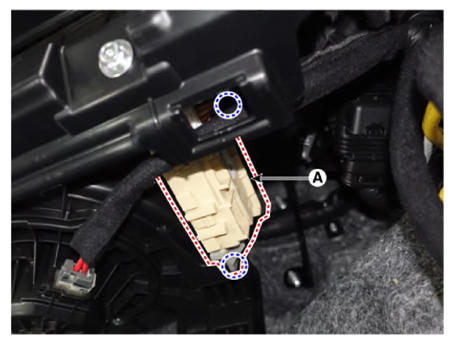

  3. Remove the ICM relay box (A) by loosening the screws.
    G13312086Courtesy of KIA MOTORS AMERICA, INC.

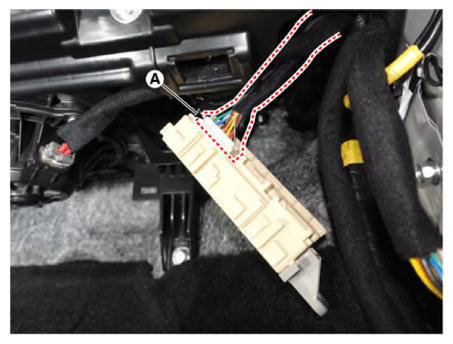

  4. Disconnect the ICM relay box connector (A).
G13312087Courtesy of KIA MOTORS AMERICA, INC.
