Switch Input

  1. Operation Function
    • * Hazard lamp switch, Seat belt switch, Liftgate switch, Door switch, etc.
  2. Operation Description

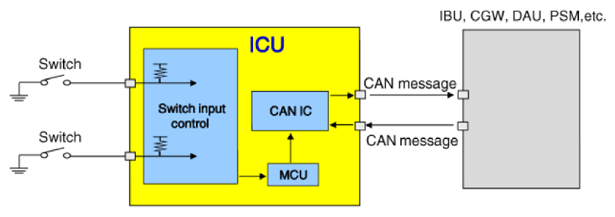

  1. Determined switch operation status
  2. Switch status messages are sent to other modules (IBU, CGW, DAU, PSM, etc.) via CAN communication.
G13312071Courtesy of KIA MOTORS AMERICA, INC.
