Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

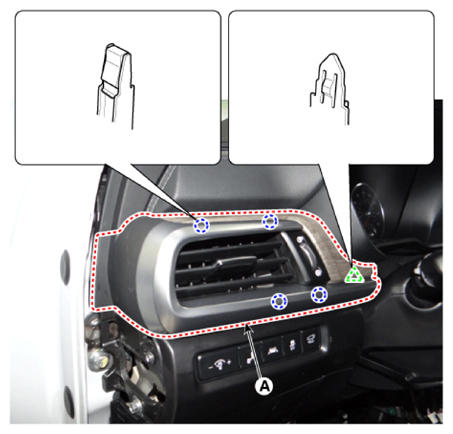

  3. Remove the side airvent duct assembly (A).
    G13312076Courtesy of KIA MOTORS AMERICA, INC.

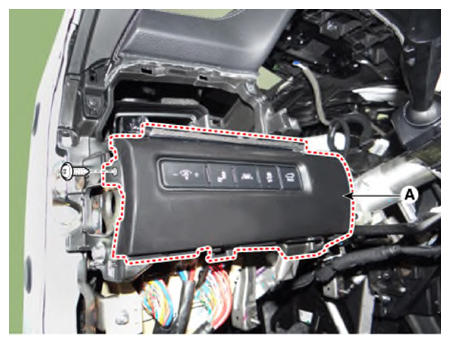

  4. Remove the side crash pad switch panel (A) after loosening the screw.
    G13312077Courtesy of KIA MOTORS AMERICA, INC.

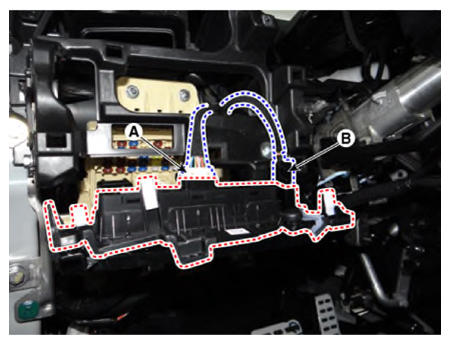

  5. Disconnect the side crash pad switch assembly connector (A) and mood lamp unit connector (B).
    G13312078Courtesy of KIA MOTORS AMERICA, INC.

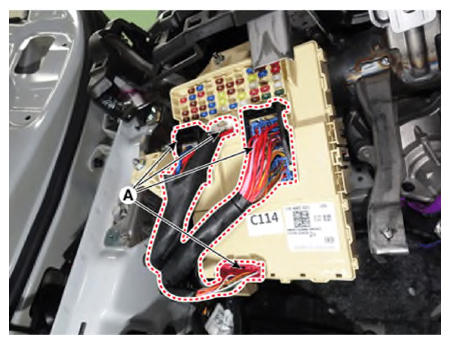

  6. Disconnect the connectors (A) from the ICU.
    G13312079Courtesy of KIA MOTORS AMERICA, INC.

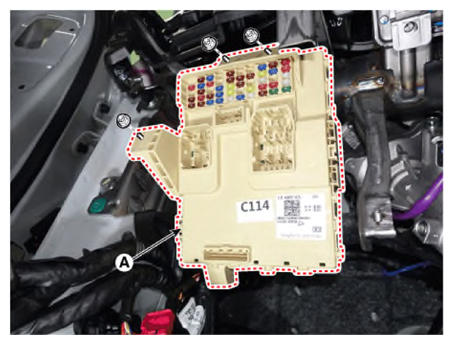

  7. Remove the ICU (A) by loosening the nuts.
    G13312080Courtesy of KIA MOTORS AMERICA, INC.

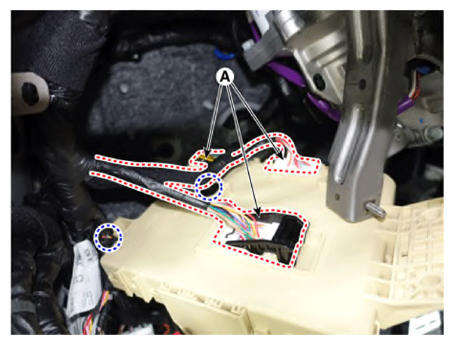

  8. Disconnect the connectors (A) from the ICU and then remove the wiring mounting clip.
G13312081Courtesy of KIA MOTORS AMERICA, INC.
