Circuit Inspection

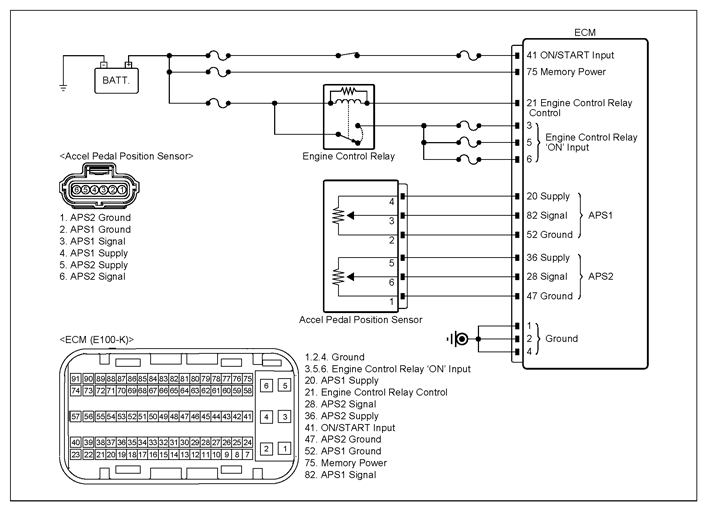

G13334919

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	APS1 connector	4 (power)	Chassis ground	-	Approx. 5V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	APS1 connector	2 (ground)	Chassis ground	-	Approx. below 1Ω
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component and ECM.	APS1 connector	3 (signal)	ECM connector	82 (signal)	Approx. below 1Ω
	APS1 connector	3 (signal)	Chassis ground	-	∞ (infinity)Ω
	APS1 connector	3 (signal)	APS1 connector	4 (power)	∞ (infinity)Ω

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the accelerator position sensor and go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
